Product Details:
|
| Artical Number: | PSR4700uf25v 18x40 | Capacitance Range: | 0.1UF~10000UF |
|---|---|---|---|
| Voltage Range: | 6.3V~500V | Tolerance: | ±20% |
| Application: | High Temperature Circuits | Type: | Aluminum Electrolytic Capacitor |
| Size: | 18X40mm | Sample Service: | Support |
| High Light: | 4700uf Radial Electrolytic Capacitor,25v Radial Electrolytic Capacitor,4700uf 25v capacitor |
||

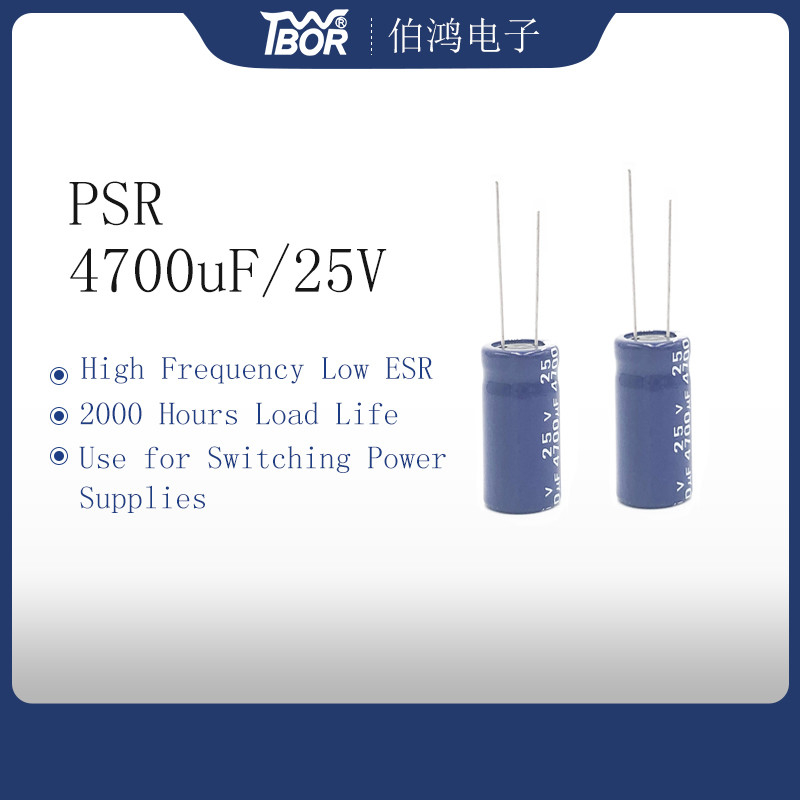

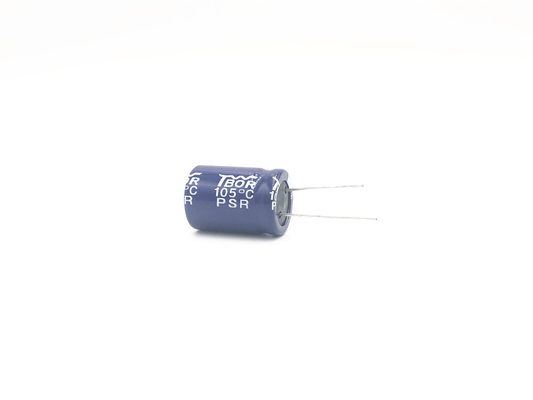

18x40mm 4700uf25v 2000 Hours Load Radial Electrolytic Capacitor
PRODUCT DESCRIPTION
| Name | Aluminum Electrolytic Capacitor |
| Style Number | PSR4700uf25v 18x40 |
| MOQ | 1000 PCS |
| Sample | Provide |
| Serial Model | PSR Series |
FEATURES
| Low impedance at high frequency |
| Ideally suited for use ofswitching power supplies andother industrial electronic product appictions |
SPECIFICATIONS
| Item | Key Features |
| Operating Temperature Range | -40°C~+105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC |
| Nominal Capacitance Range | 4.7uF~ 10000uF |
| Capacitance Tolerance | +20%(M) (+ 25°C,100/120Hz) |
| Leakage Current | LC<0.01CV or 3(uA)which is bigger should be adopted,2-minute application ofrated working voltage, (+ 25°C) | ||
| C:Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Curret in uA | |
| Dissipation Factor | Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 |
| DF(MAX (+25°C,100/120Hz) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |
| When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF | |||||||||
| High Temperature Load Life | After applying rated working voltage for 2000-3000 hours at 105°C and test the stabilized capacitors at +25°C, capacitors shall meet following limits | |
| Capacitane change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Withn specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C With no voltage applied and test the stabilized capacitors at + 25°C,capacitors shall meet following limits | |
| Capacitance change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Less than 200% of the specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng has an excellent team of R&D experts and workers with a complete set of fully automatic capacitor production lines and testing equipment imported from Japan and Taiwan. bor Hurng's strongest product is the aluminium electrolytic capacitor for lighting, which features small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good solderability. The capacitors are suitable for use in CFLs, LED lamps, HID lamps, electronic ballasts and UPS. Due to the above advantages, Bor Hung enjoys a high reputation at home and abroad. Apart from mainland China, our products are exported to North America, South America, Europe, Middle East, Australia, India, Russia, Singapore and other regions and countries.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
FAQ
A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.
Q: What is the material of your products?
A: The material is aluminum.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need.
