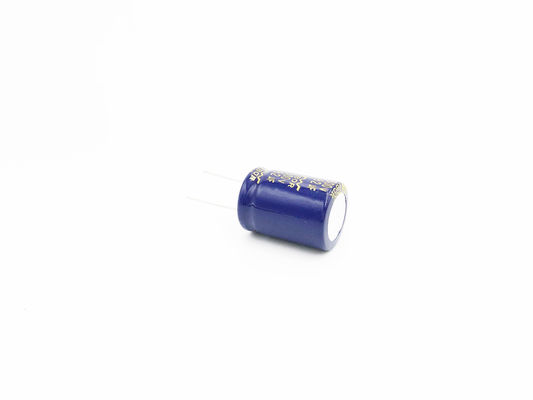

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm

Certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
I'm Online Chat Now

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm
PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm

Large Image :  PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: PHT82UF500V 22X30
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 per month

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm

Description
Artical Number: PHT82UF500V 22X30 Capacitance: 82uF
Voltage: 500V Tolerance: ±20%
Type: Radial Supplier Type: Original Manufacturer
Application: LED Light Design: Original
Advantage 1: Fast Delivery Advantage 2: Factory Price
Advantage 3: More Than 30 Years Experience Capacitor Producing Advantage 4: Sample Offered By Free
Advantage 5: 20 Hours On Time Service
High Light:

82UF 500V Long Life Capacitor

,

Radial Electrolytic Capacitor 22X30mm

,

PHT 82UF 500V Capacitor

82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm



PHT series



FEATURES
1. Low impedance at high frequency.

2. Ideally suited for use ofswitching power supplies andother industrialelectronic product applications.

3. Loda life of 8000~ 10000 hours at 105°C



SPECIFICATIONS


Key Features

Operating Temperature Range -40°C~+ 105°C -40°C~+ 105°C -25°C~+ 105°C
Rated Working Voltage Range 6.3VDC~ 100VDC 1 60VDC ~450VDC 450VDC ~ 500VDC
Nominal Capacitance Range 4.7uF ~ 10000uF
Capacitance Tolerance 士20%(M) (+ 25°C,100/120Hz)





Leakage Current

LC≤0.01CV or3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C)   LC≤0.02CV+ 10,2 minute appication of rated working voltage, (+25°C)
Nominal Capacitance in uF Rated working Voltage in V Leakage Current in uA


Dissipation Factor

Rated Working Voltage 6.3 10 16 25 35 50 63 100 160 200 250 400 450-500
DF(MAX (+25*C,100/120Hz) 022 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.15 0.15 0.18 0.20
For cpactance of more than 1000 uF, add 0.2 for every increase of 1000 uF


High Temperature Load Life


After applying rated working voltage for 8000-10000 hours at 105°C and then being stabilized at +25°C,capacitors shall met following Iimits

Capacitance change Within 20% of teinitial measured value
Dissipation Factor Les than 200% of the specified value
Leakage Currnt Within specified value



High Temperature Shelf Life


After storage for 500 hours at 105°C With no voltage applied and then being stabilized at+ 25°C, capacitors shall meet following imits

Capacitance change Within + 20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Less than 200% of the specified value

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 0



PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 1








Company Profile

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 2



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. Bor Hurng enjoys high reputation at home and abroad. Besides, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.



Capacitor Use:

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 3PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 4



Packing:

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 5





Cooperative Company:

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 6

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 7



Our Certificate

PHT 82UF 500V Long Life Radial Electrolytic Capacitor 22X30mm 8



WHY CHOOSE US



1.More than 30 years experience for capacitor producing & QC team.

2.Professional R&D and sales team.

3.7day*24 hours on time service.

4.Focus on after service.

5.7day*24 hours on time service.

6.Competitive price .
