Product Details:
|

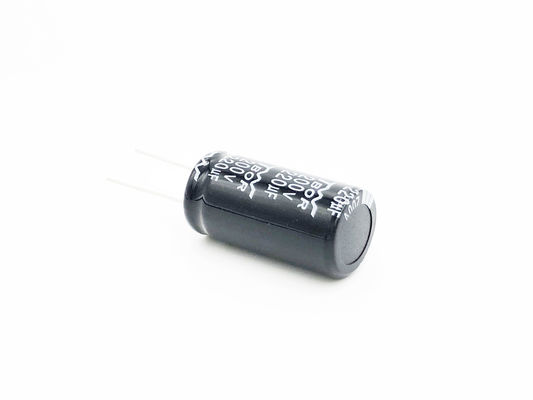

| Artical Number: | SMR220UF200V 22X25 | Tolerance: | ±20% |
|---|---|---|---|
| Quality Level: | Hight Quality | Application: | High Temperature Circuits |
| Supplier Type: | Factory | Certificate: | ISO9001 ISO 14001 RoHS |
| Advantage 1: | Fast Delivery | Advantage 2: | 24 Hours On Time Service |
| Advantage 3: | Sample Offered By Free | ||
| High Light: | 200V Radial Electrolytic Capacitor,220uF Radial Electrolytic Capacitor,220uF 200V Capacitor |
||
SMR Series
FEATURES
■ High temperature radial lead type.
■ Ideal for high temperature use.
■ Load life of 2000 hours at 105°C.
SPECIFICATIONS
| Item | Key Features | |
| Operating Temperature Range | -40°C~+105°C | -25°C~+105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC~500VDC |
| Nominal Capacitance Range | 0.1uF~1000uF | 0.47uF~470uF |
| Capacitance Tolerance | +20%(M) (+25C,100/120Hz) | |
| Leakage Current | LCs0.01CV or 3 ( uA) which is bigger should be adopted,2-minute application of rated working voltage, (+25°C) |
LC<0.03CV+ 10, 2-minute application of rated working voltage, (+ 25°C)th rated working Voltage applied | |
| C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Current in uA |
| Dissipation Factor | Rated Working Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160-250 | 350- 500 |
| DF (MAX (+ 25°C,100/120Hz) | 0.28 | 0.24 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.08 | 0.20 | 0.24 | |
| When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF | |||||||||||
| High Temperature Load Life | After applying rated working voltage for 2000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet following limits | |
| Capacitance change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C With no voltage applied and test the stabilized capaitors at + 25°C,capacitors shall meet following limits | |
| Capacitance change | Within +20% of the initial measured value | |
| Disiation Factor | Less than 200% of the specified value | |
| Leakage Current | Less than 200% of the specified value | |
