Product Details:
|
Features: | High Frequency Low ESR | Model Number: | PSR 4700UF25V 18X25 |
---|---|---|---|
Capacitance: | 4700uF | Voltage: | 25V |
Tolerance: | ±20% | Type: | Aluminum Electrolytic Capacitor |
Application: | Photovoltaic Power | ESR (Equivalent Series Resistance): | LOW ESR |
Advantage 1: | Fast Delivery | Advantage 2: | Factory Price |
Advantage 3: | More Than 30 Years Experience Capacitor Producing | ||
High Light: | 18x25mm Ridial Electrolytic Capacitor,Power Switch Ridial Electrolytic Capacitor |

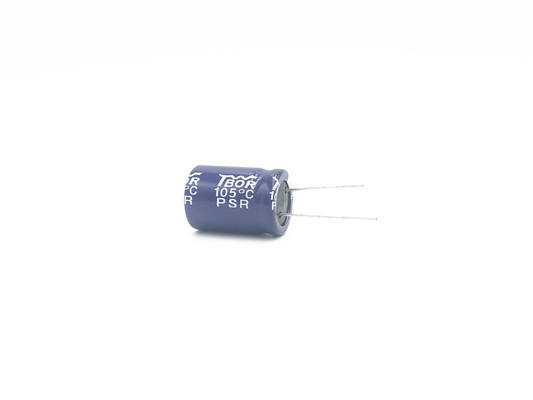

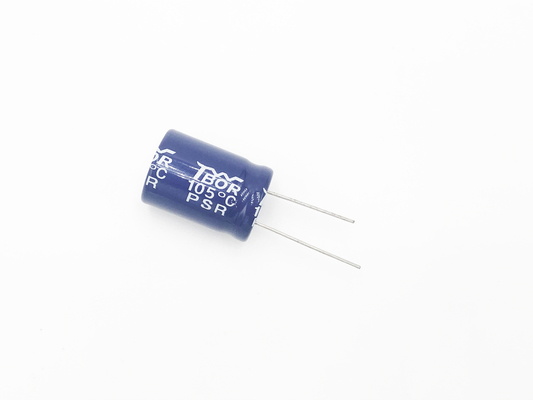

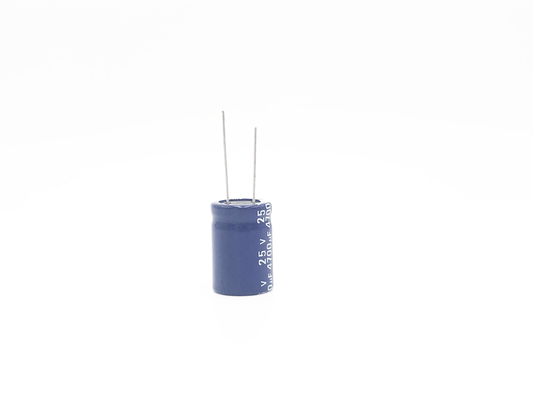

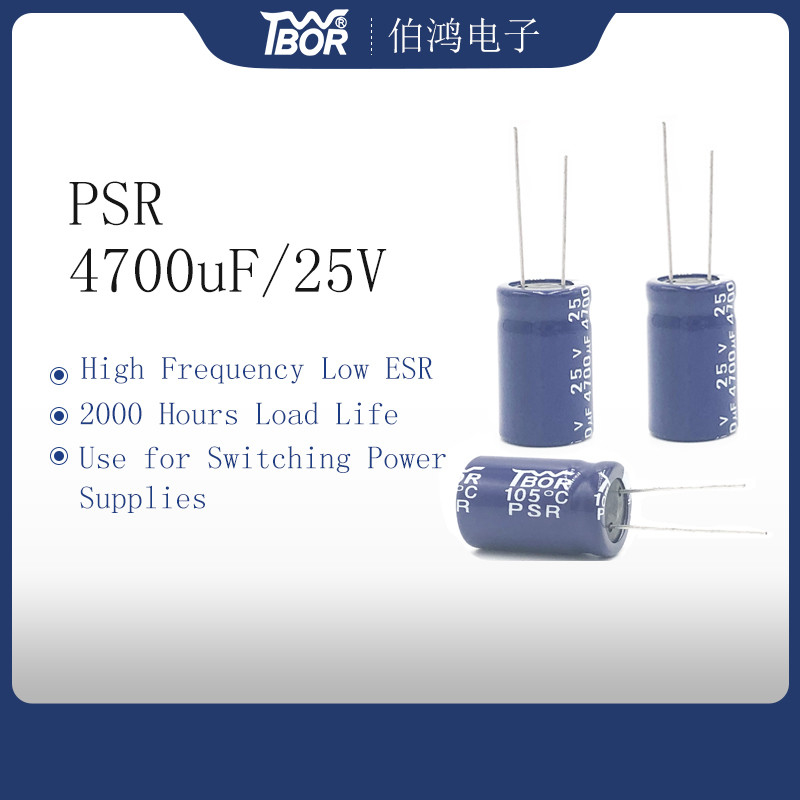

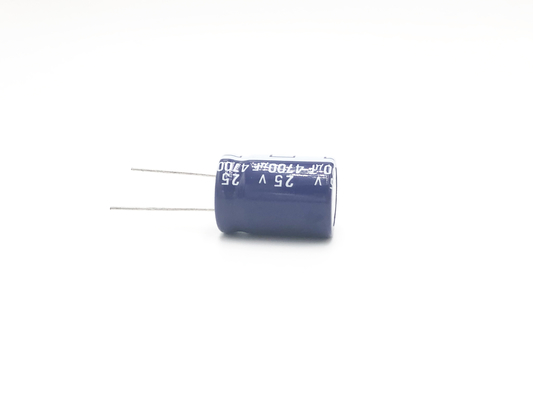

18x25mm Ridial Electrolytic Capacitor ISO9001 Switching Power Capacitors
PRODUCT DESCRIPTION
Name | Aluminum Electrolytic Capacitor |
Style Number | PSR4700uF25V 18x25 |
MOQ | 1000 PCS |
Sample | Provide |
Serial Model | PSR Series |
FEATURES
Low impedance at high frequency |
Ideally suited for use ofswitching power supplies andother industrial electronic product appictions |
SPECIFICATIONS
Item | Key Features |
Operating Temperature Range | -40°C~+1059C |
Rated Working Voltage Range | 6.3VDC~ 100VDC |
Nominal Capacitance Range | 4.7uF~ 10000uF |
Capacitance Tolerance | +20%(M) (+ 25°C,100/120Hz) |
Leakage Current | LC<0.01CV or 3(uA)which is bigger should be adopted,2-minute application ofrated working voltage, (+ 25°C) | ||
C:Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Curret in uA |
Dissipation Factor | Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 |
DF(MAX (+25°C,100/120Hz) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |
When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF |
High Temperature Load Life | After applying rated working voltage for 2000-3000 hours at 105°C and test the stabilized capacitors at +25°C, capacitors shall meet following limits | |
Capacitane change | Within士20% of the initial measured value | |
Dissipation Factor | Less than 200% of the specified value | |
Leakage Current | Withn specified value |
High Temperature Shelf Life | After storage for 500 hours at 105°C With no voltage applied and test the stabilized capacitors at + 25°C,capacitors shall meet following limits | |
Capacitance change | Within士20% of the initial measured value | |
Dissipation Factor | Less than 200% of the specified value | |
Leakage Current | Less than 200% of the specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡. We certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
