Product Details:
|
Artical Number: | TRR 470UF200V 25X30 | Capacitance: | 470UF |
---|---|---|---|
Voltage: | 200V | Tolerance: | ±20% |
Application: | Switching Power Supplies | Supplier Type: | Original Manufacture |
Type: | Aluminum Electrolytic Capacitor | Temperature Range: | -40 °C~ +105°C |
Capacitance Range: | 47uF ~ 6800uF | Voltage Range: | 10V ~ 500V |
Material: | Aluminum | Color: | Black |
Size: | 25X30 | ||
High Light: | 25X30MM Snap In Capacitor,470UF200V Switching Power Supply Capacitor,Snap In Capacitor 470UF200V |

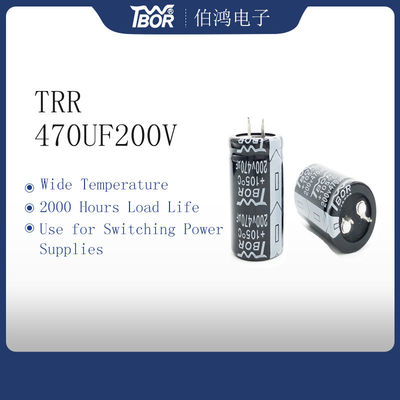

470UF200V 25X30MM Snap In Capacitor Switching Power Supplies Capacitors
TRR series
FEATURES
■ 105°C,snap-inproductwithterminalseries Wi
de temperature and 2000 hourslong lie
■ Explosion-proof structure
■ Suited for HID light, UPS and other electronic products
SPECIFICATIONS
Item | Key Feature | |
Operating Temperature Range | -40°C~+105°C | -25°C~+105°C |
Rated Working Voltage Range | 10VDC~ 100VDC | 160VDC ~ 500VDC |
Nominal Capacitance Range | 1000uF ~ 68000uF | 47uF~ 1000uF |
Capacitance Tolerance | 土20%(M)(+ 25°C,100/120Hz) |
Leakage Current | LC≤3,CV,5-minute application of rated working voltage,(+ 25°C) | ||
C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Current in uA |
Dissipation Factor | Rated Working Voltage(V) | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400-500 |
DF(MAX (+25°C,100/120Hz) | 0.50 | 0.40 | 0.35 | 0.35 | 0.25 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.20 | |
For cpatance of more than 10 add 0.0|2 for every increase of 1000uF |
High Temperature Load Life | After applying rated working voltage for 2000 hours at 130°C and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within士20% of the initial measured value | |
Disipation Factor | Less than 300% of the specified value | |
Leakage Current | Withn specified value |
High Temperature Shelf Life | After storage for 500 hours at 130C With no voltage applied and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within土20% of the initial measured value | |
Disspation Factor | Less than 300% of the specified value | |
Leakage Current | Less than 300% of the specified value |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
WHY CHOOSE US
1.Rich Experience for Capacitor Producing
We are a factory who has more that 30 years experience for capacitor producing.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.How Could I Get a Sample?
Samples can be offered by free, you can take if from our office by your express delivery.
4.Good Service
24 hours on time service.
5. why should you buy from us not from other suppliers?
Our quality is reliable, professional and low costs, with quick and perfect service to our guest.
