Product Details:
|
Artical Number: | PSL 120uF450V 22X45 | Capacitance Range: | 1uF~220uF |
---|---|---|---|
Voltage: | 200V~450V | Tolerance: | ±20% |
Impedance: | Contact Us To Check Our Datasheet | Material: | Aluminum |
Color: | Orange | Size: | 22X45 |
Operating Temperature: | -40℃~+105℃ | Place Of Origin: | Zhao Qing China |
Supplier Type: | Original Manufacturer | ||
High Light: | 22X45MM CFL Aluminum Electrolytic Capacitor,Orange Capacitor 120uF 450V,Aluminum Electrolytic Capacitor 120uF450V |
PRODUCT SPECIFICATION
PSL Series

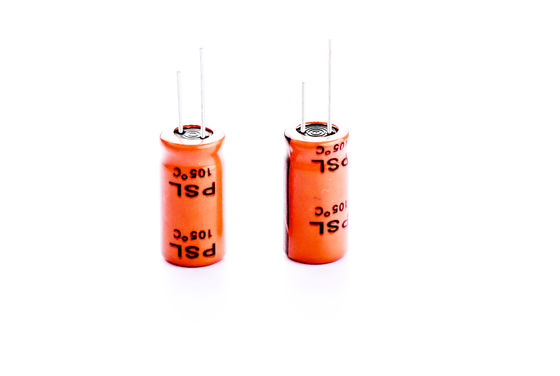

Model Number | PSL 120uF450V 22X45 |
Capacitance Range | 1uF~220uF |
Voltage Range | 200V~450V |
Tolerance | ±20% |
Temperature Range | -40℃~+105℃ |
FEATURES
■105°C,High ripple current, 10000-12000 hours extremely long life.
■Suited for CFL, electronic ballast and other electronic products.
SPECIFICATIONS
Item | Key Feature |
Operating Temperature Range | -40℃~+105℃ |
Rated Working Voltage Range | 200VDC ~ 450VDC |
Nominal Capacitance Range | 1uF ~ 220uF |
Capacitance Tolerance | +20%(M) (+25*C,100/120Hz) |
Leakage Current | LC <0.02CV+ 10uA,2-minute application of rated working voltage,(+ 25°C) | ||
C: Nominal Capacit ance in uF |
V:Rated Working Voltage in V | LC: Leakage Current in uA |
Dissipation Factor | Rated Working Voltage (M) | 200 | 250 | 400 | 450 |
DF (MAX)(+ 25°C,100/120Hz) | 0.08 | 0.08 | 0.10 | 0.10 |
high Temperature Load Life | After applying rated working voltage with rated ripple current for 10000 hours at 105°C and test the stabilized capacitors at -25°C, the capacitors shall meet the following limits. | |
Capacitance change | Within+20 % of the initial measured value | |
Disspation Factor | Less than 300% of the specified value | |
Leakage Current | Within specified value |
High Temperature Load Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capacitors at + 25°C, the capacitors shall meet the following limits. | |
Capacitance change | Within +20 % of the initial measured value | |
Disspation Factor | Less than 200 % of the specified value | |
Leakage Current | Less than 200 % of the specified value |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
FAQ
A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.
Q: What is the material of your products?
A: The material is aluminum.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need.
