8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours

Certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
I'm Online Chat Now

8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours

8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours
8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours

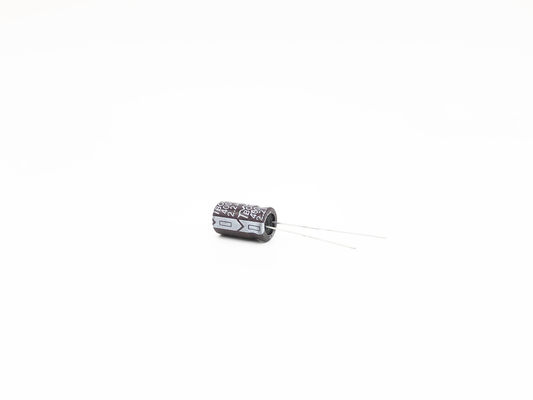

Large Image :  8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: PSH 2.2UF400V 8X12
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 million pcs per month

8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours

Description
Artical Number: PSH 2.2UF400V 8X12 Capacitance: 2.2UF
Voltage: 400V Tolerance: ±20%
Temperature Range: -40℃~+105℃ Voltage Range: 200V~450V
Applications: CFL Certificate: ISO9001 ISO 14001 RoHS
Supplier Type: Original Manufacturer Place Of Origin: Zhao Qing China
Load Life: 5000 Hours Advantage 1: Fast Delivery
Advantage 2: Factory Price Advantage 3: High Ripple Current
Advantage 4: Extremely Long Life
High Light:

8x12mm High Ripple Current Electrolytic Capacitor

,

Capacitor 2.2UF 400V 5000 Hours

,

8x12mm Capacitor 2.2UF 400V

8x12mm Inverter Capacitor 2.2UF400V 5000 Hours CFL Capacitors



PSH series



FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL,electronic ballast and other electronic products


SPECIFICATIONS


Item Key Feature
Operating Temperature Range -40°C~ +105°C
Rated Working Voltage Range 200VDC ~ 450VDC
Nominal Capacitance Range 1uF ~ 220uF
Capacitance Tolerance 20%(M)(+ 25°C,100/120Hz)
Leakage Current LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C)
C: Nominal Capacitance in uF V: Rated Working Voltage in V LC: Leakage C
urrent in uA
Disspation Factor Rated Working Voltage(V) 200 250 400 450
DF (MAX)(+25°C,100/120Hz) 0.10 0.10 0.12 0.12
highr Teperaure loaLife After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits.
Capacitance change Within土20 % of the initial measured value
Disspation Factor Less than 200 % of the specified value
Leakage Current Within specified value
High Temperature Shelf Life After storage for 500 hours at 105°C with no
voltage applied and test the stabilized capac
itors at+ 25°C,the capacitors shall meet the fo
llowing limits.
Capacitance change Within土20 % of the initial measured value
Disspation Factor Less than 200 % of the specified value
Leakage Current Less than 200 % of the specified value



8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 0

Product Detail:

8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 18x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 28x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 38x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 4



Company Profile:

8x12mm High Ripple Current Electrolytic Capacitor 2.2UF400V 5000 Hours 5



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
