Product Details:
|
Model Number: | TRR10000uf80v 35x70 | Capacitance: | 10000UF |
---|---|---|---|
Voltage: | 80V | Tolerance: | ±20% |
Operating Temperature: | -40℃~ 105℃ | Endurance: | 2000 Hours |
Application: | Switching Power Supplies | Material: | Aluminum |
Color: | Black | Size: | 35x70mm |
Place Of Origin: | Zhao Qing China | Package: | Standard Carton |
High Light: | 10000u F80V Inverter Capacitor,35x70mm Aluminum Electrolytic Capacitor,10000u F80V Aluminum Electrolytic Capacitor |

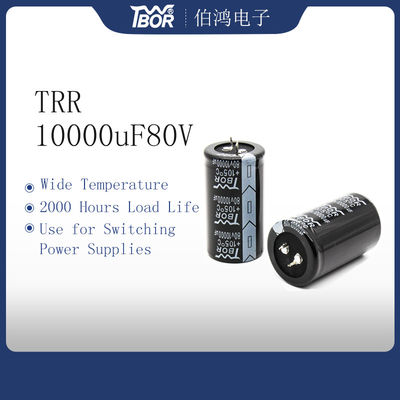

10000uF80V Inverter Capacitor 35x70mm UPS Aluminum Electrolytic Capacitor
TRR series
FEATURES
■105°C,snap-in productwithterminalseries Wi
de temperature and 2000 hourslong lie
■Explosion-proof structure
■Suited for HID light, UPS and other electronic products
SPECIFICATIONS
Item | Key Feature | |
Operating Temperature Range | -40°C~+105°C | -25°C~+105°C |
Rated Working Voltage Range | 10VDC~ 100VDC | 160VDC ~ 500VDC |
Nominal Capacitance Range | 1000uF ~ 68000uF | 47uF~ 1000uF |
Capacitance Tolerance | 土20%(M)(+ 25°C,100/120Hz) |
Leakage Current | LC≤3,CV,5-minute application of rated working voltage,(+ 25°C) | ||
C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Current in uA |
Dissipation Factor | Rated Working Voltage(V) | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400-500 |
DF(MAX (+25°C,100/120Hz) | 0.50 | 0.40 | 0.35 | 0.35 | 0.25 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.20 | |
For cpatance of more than 10 add 0.0|2 for every increase of 1000uF |
High Temperature Load Life | After applying rated working voltage for 2000 hours at 130°C and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within士20% of the initial measured value | |
Disipation Factor | Less than 300% of the specified value | |
Leakage Current | Withn specified value |
High Temperature Shelf Life | After storage for 500 hours at 130C With no voltage applied and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within土20% of the initial measured value | |
Disspation Factor | Less than 300% of the specified value | |
Leakage Current | Less than 300% of the specified value |
