Product Details:
|
Model Number: | TRR220UF450V 30x60 | Capacitance: | 220UF |
---|---|---|---|
Voltage: | 450V | Tolerance: | ±20% |
Operating Temperature: | -40℃~ 105℃ | Endurance: | 2000 Hours |
Application: | Switching Power Supplies | Package Type: | Standard |
Supplier Type: | Original Manufacturer | Sample Service: | Support |
Size: | 30x60mm | Keyword: | Snap-in Electrolytic Capacitor |
High Light: | Wide Temperature snap in electrolytic capacitors,Snap In Electrolytic Capacitors 680uf 450v,680uf 450v capacitor 35x60mm |

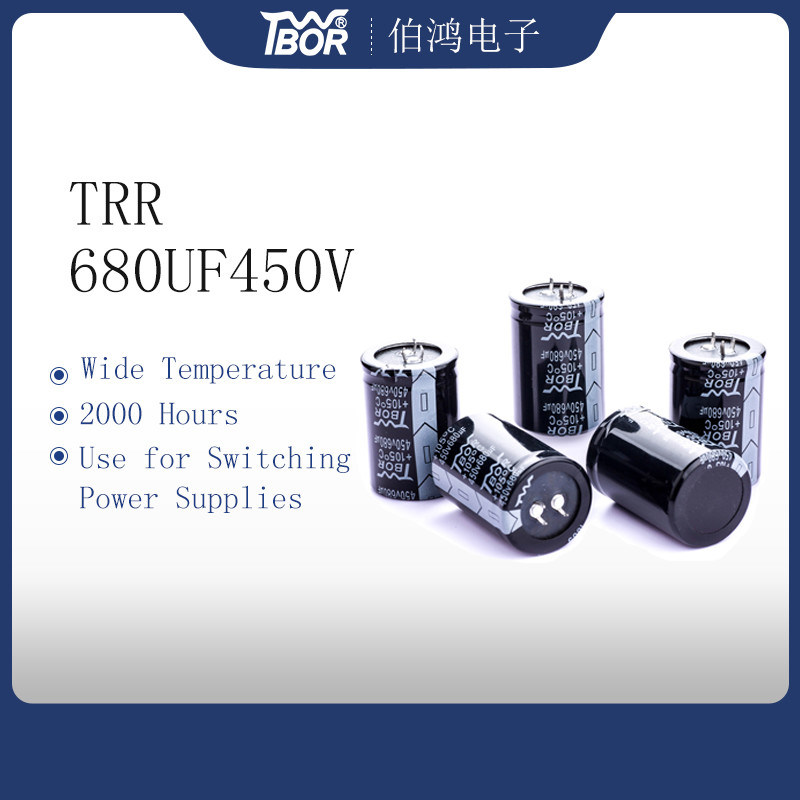

TRR series
FEATURES
■105°C,snap-inproductwithterminalseries Wide temperature and 2000 hourslong lie
■Explosion-proof structure
■Suited for HID light, UPS and other electronic products
SPECIFICATIONS
Item | Key Feature | |
Operating Temperature Range | -40°C~+105°C | -25°C~+105°C |
Rated Working Voltage Range | 10VDC~ 100VDC | 160VDC ~ 500VDC |
Nominal Capacitance Range | 1000uF ~ 68000uF | 47uF~ 1000uF |
Capacitance Tolerance | 土20%(M)(+ 25°C,100/120Hz) |
Leakage Current | LC≤3,CV,5-minute application of rated working voltage,(+ 25°C) | ||
C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Current in uA |
Dissipation Factor | Rated Working Voltage(V) | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400-500 |
DF(MAX (+25°C,100/120Hz) | 0.50 | 0.40 | 0.35 | 0.35 | 0.25 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.20 | |
For cpatance of more than 10 add 0.0|2 for every increase of 1000uF |
High Temperature Load Life | After applying rated working voltage for 2000 hours at 130°C and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within士20% of the initial measured value | |
Disipation Factor | Less than 300% of the specified value | |
Leakage Current | Withn specified value |
High Temperature Shelf Life | After storage for 500 hours at 130C With no voltage applied and then being stabilized at+ 25°C,capacitors shall met following limits | |
Capacitance change | Within土20% of the initial measured value | |
Disspation Factor | Less than 300% of the specified value | |
Leakage Current | Less than 300% of the specified value |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Our strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
