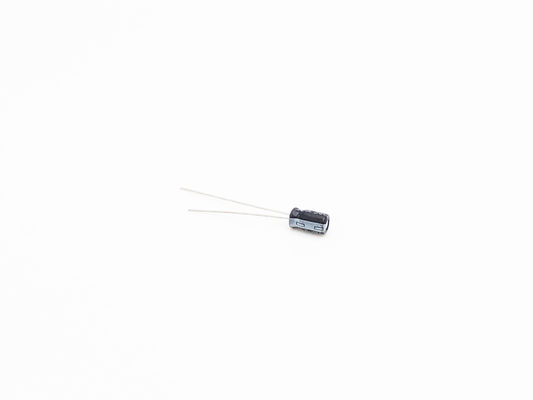

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm

Certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
I'm Online Chat Now

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm
2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm

Large Image :  2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: SMR 4.7UF50V 5x11
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 million per month

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm

Description
Artical Number: SMR 4.7UF50V 5x11 Certificate: ISO9001 ISO 14001 RoHS
Working Hours: 2000 Hours Delivery Time: 7-12 Days
Current - Leakage: Does Not Exceed The Standard Value Capacitance Range: 0.1uF~10000uF
Voltage Range: 6.3V~500uF Operating Temperature: -40℃~105℃
High Light:

Radial Lead Type Capacitor 4.7UF 50V

,

4.7 uf 50v capacitor 5x11mm

,

5x11mm Radial Lead Type Capacitor

4.7UF50V 5x11mm High Temperature Circuits Radial Electrolytic Capacitor



PRODUCT SPECIFICATION



SMR series



FEATURES
■ High temperature radial leads type.

■ Load life of 2000 hours at 105°C.
■ Ideally suited for hightemperature use.



SPECIFICATIONS

Item Key Features
Operating Temperature Range -40°C~+105°C -25°C~+105°C
Rated Working Voltage Range 6.3VDC~ 100VDC 160VDC~500VDC
Nominal Capacitance Range 0.1uF~1000uF 0.47uF~470uF
Capacitance Tolerance +20%(M) (+25C,100/120Hz)
Leakage Current LCs0.01CV or 3 ( uA) which is bigger should
be adopted,2-minute application of rated working voltage, (+25°C)
  LC<0.03CV+ 10, 2-minute application of rated working voltage, (+ 25°C)th rated working Voltage applied
C: Nominal Capacitance in uF V:Rated Working Voltage in V LC: Leakage Current in uA
Dissipation Factor Rated Working Voltage(V) 6.3 10 16 25 35 50 63 100 160-250 350- 500
DF (MAX (+ 25°C,100/120Hz) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.24
When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF
High Temperature Load Life After applying rated working voltage for 2000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet following limits
Capacitance change Within士20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Within specified value
High Temperature Shelf Life After storage for 500 hours at 105°C With no voltage applied and test the stabilized capaitors at + 25°C,capacitors shall meet following limits
Capacitance change Within +20% of the initial measured value
Disiation Factor Less than 200% of the specified value
Leakage Current Less than 200% of the specified value

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 0


Company Profile

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 1



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.



Capacitor Use:

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 22000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 3



Packing:

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 4





Cooperative Company:

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 5

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 6



Our Certificate

2000 Hours Load Life Radial Lead Type Capacitor 4.7UF 50V 5x11mm 7



FAQ


Q: Are you trading company or manufacturer ?

A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.



Q: What is the material of your products?

A: The material is aluminum.



Q: How can us get some samples?

A: We are honored to offer you samples. if you need.



Q: How does your factory do regarding quality control?

A: "Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;RoSH authentication. We have the professional technical personnel team,advanced equipments;Skilled production technology by 30 years.



Q: What is the delivery time?

A: Normally,the time is 7~30days as we can;we must do our best to do it much quickly.
