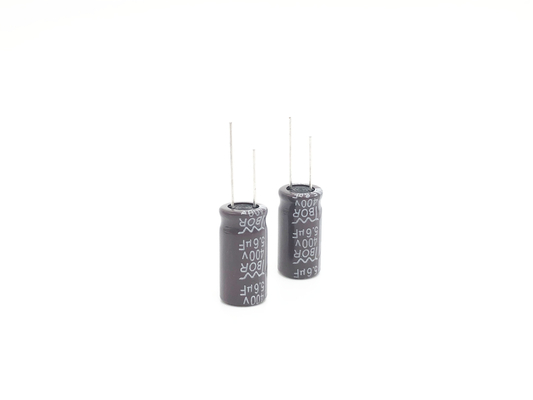

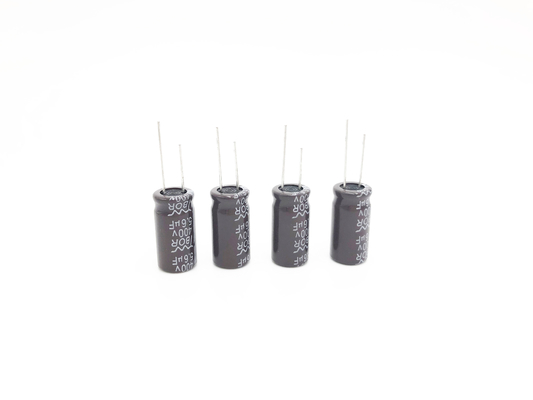

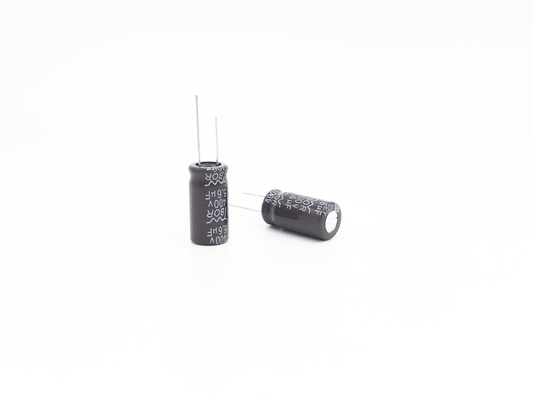

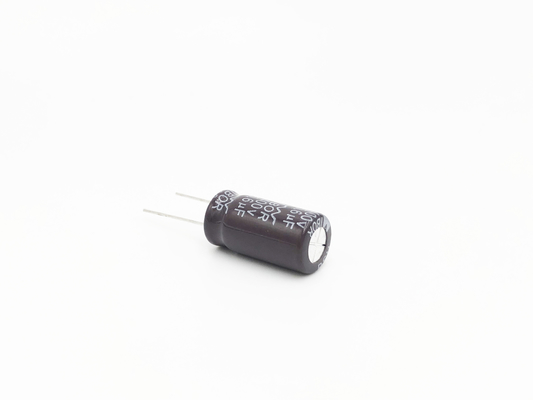

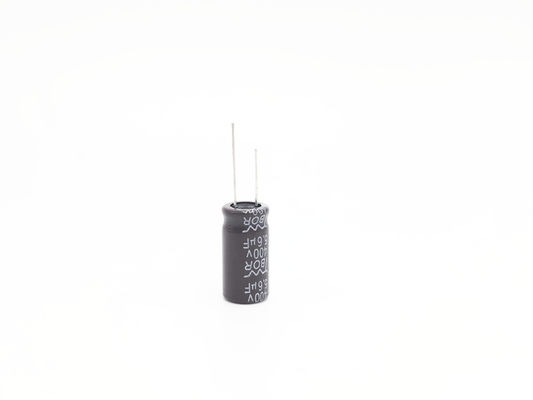

Product Details:
|
| Artical Number: | PSH 5.6UF400V 10X20 | Capacitance: | 5.6UF |
|---|---|---|---|
| Voltage: | 400V | Tolerance: | ±20% |
| Temperature Range: | -40℃～+105℃ | Place Of Origin: | Zhao Qing China |
| Sample Service: | Support | Voltage Range: | 200V～450V |
| Capacitance Range: | 1uF ～ 220uF | ||
| High Light: | 5.6UF400V High Ripple Current Capacitor,8000 Hours Long Life Capacitor,High Ripple Current Capacitor 8000 Hours |
||

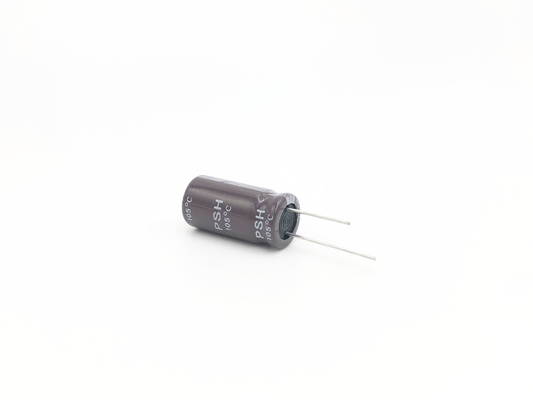

PSH series
FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL,electronic ballast and other electronic products
SPECIFICATIONS
| Item | Key Feature |
| Operating Temperature Range | -40°C~ +105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF ~ 220uF |
| Capacitance Tolerance | 20%(M)(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C) | ||
| C: Nominal Capacitance in uF | V: Rated Working Voltage in V | LC: Leakage C urrent in uA |
|
| Disspation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+25°C,100/120Hz) | 0.10 | 0.10 | 0.12 | 0.12 |
| highr Teperaure loaLife | After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capac itors at+ 25°C,the capacitors shall meet the fo llowing limits. |
|
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Less than 200 % of the specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. We have an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
