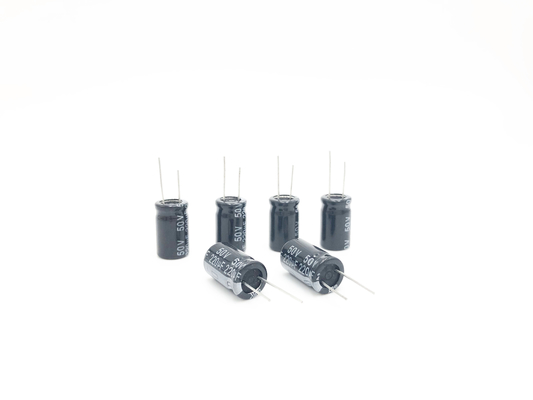

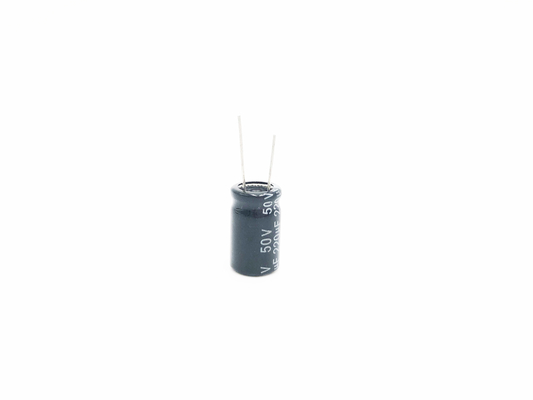

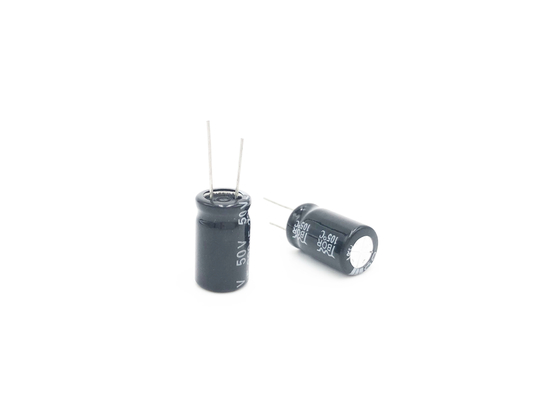

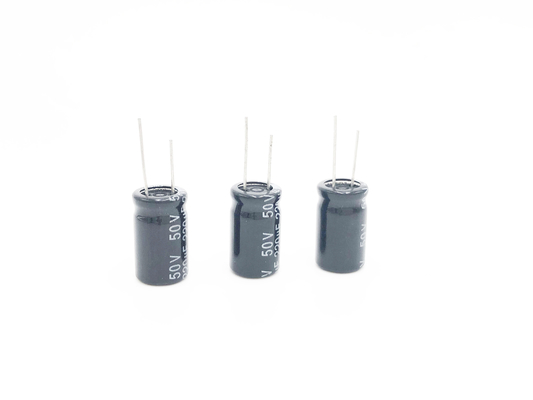

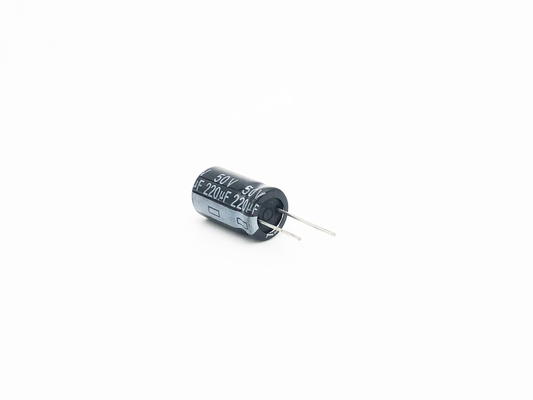

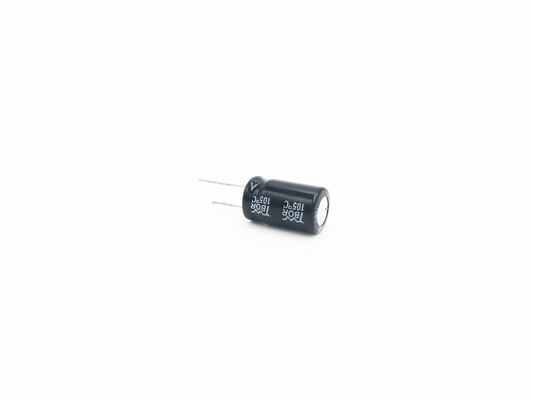

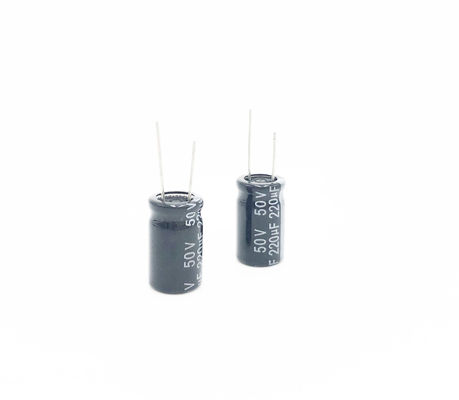

Product Details:
|
| Artical Number: | SMR 220UF50V 10X17 | Capacitance: | 220UF |
|---|---|---|---|
| Voltage: | 50V | Tolerance: | ±20% |
| Application: | High Temperature Circuits | Supplier Type: | Original Manufacture |
| Type: | Aluminum Electrolytic Capacitor | Capacitance Range: | 0.1UF~10000UF |
| Voltage Range: | 6.3V~500V | Temperature Range: | -40 °C +105°C |
| Sample Service: | Samples Offered By Free | ||
| High Light: | 10X17MM Radial Aluminum Electrolytic Capacitors,SMR 220uf 50v capacitor,Radial Aluminum Electrolytic Capacitors 10X17MM |
||
SMR Series
FEATURES
■High temperature radial leads type.
■Load life of 2000 hours at 105°C.
■Ideally suited for high temperature use.
SPECIFICATIONS
| Item | Key Features | |
| Operating Temperature Range | -40°C~+105°C | -25°C~+105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC~500VDC |
| Nominal Capacitance Range | 0.1uF~1000uF | 0.47uF~470uF |
| Capacitance Tolerance | +20%(M) (+25C,100/120Hz) | |
| Leakage Current | LCs0.01CV or 3 ( uA) which is bigger should be adopted,2-minute application of rated working voltage, (+25°C) |
LC<0.03CV+ 10, 2-minute application of rated working voltage, (+ 25°C)th rated working Voltage applied | |
| C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Current in uA |
| Dissipation Factor | Rated Working Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160-250 | 350- 500 |
| DF (MAX (+ 25°C,100/120Hz) | 0.28 | 0.24 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.08 | 0.20 | 0.24 | |
| When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF | |||||||||||
| High Temperature Load Life | After applying rated working voltage for 2000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet following limits | |
| Capacitance change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C With no voltage applied and test the stabilized capaitors at + 25°C,capacitors shall meet following limits | |
| Capacitance change | Within +20% of the initial measured value | |
| Disiation Factor | Less than 200% of the specified value | |
| Leakage Current | Less than 200% of the specified value | |
