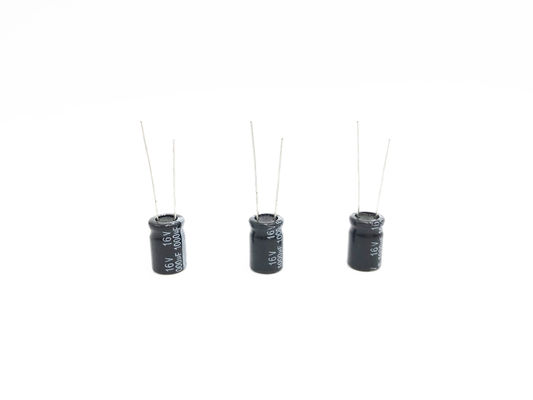

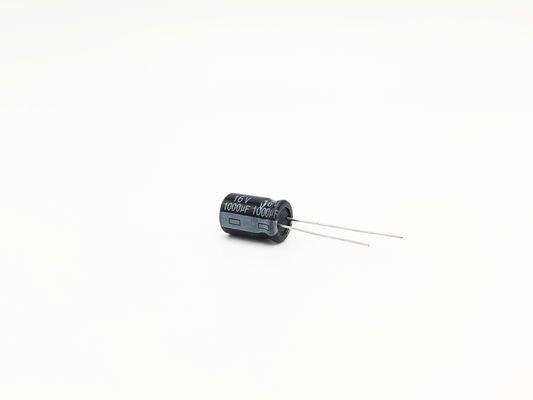

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm
High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm

Large Image :  High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: SMR 1000UF16V 10X16
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Standard Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 million per month

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm

Description
Artical Number: SMR 1000UF16V 10X16 Tolerance: ±20%
Supplier Type: Factory Operating Temperature: -40℃~105℃
Load Life: 2000 Hours Certificate: ISO9001 ISO 14001 RoHS
Package: Carton/Customized Place Of Origin: Zhao Qing China
Advantage 1: Fast Delivery Advantage 2: Factory Price
Advantage 3: Sample Offered By Free Advantage 4: High Quality
High Light:

Miniature Capacitor 1000UF16V

,

10X16mm high temperature electrolytic capacitors

,

High Temperature Miniature Capacitor 10X16mm

PRODUCT SPECIFICATION



SMR series

Model Number SMR 1000UF16V 10X16
Capacitance Range 0.1uF~10000uF
Voltage Range 6.3V~500V
Tolerance ±20%
Temperature Range -40℃~105℃



FEATURES
■High temperature radial leads type.

■Load life of 2000 hours at 105°C.
■Ideally suited for hightemperature use.



SPECIFICATIONS

Item Key Features
Operating Temperature Range -40°C~+105°C -25°C~+105°C
Rated Working Voltage Range 6.3VDC~ 100VDC 160VDC~500VDC
Nominal Capacitance Range 0.1uF~1000uF 0.47uF~470uF
Capacitance Tolerance +20%(M) (+25C,100/120Hz)
Leakage Current LCs0.01CV or 3 ( uA) which is bigger should
be adopted,2-minute application of rated working voltage, (+25°C)
  LC<0.03CV+ 10, 2-minute application of rated working voltage, (+ 25°C)th rated working Voltage applied
C: Nominal Capacitance in uF V:Rated Working Voltage in V LC: Leakage Current in uA
Dissipation Factor Rated Working Voltage(V) 6.3 10 16 25 35 50 63 100 160-250 350- 500
DF (MAX (+ 25°C,100/120Hz) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.24
When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF
High Temperature Load Life After applying rated working voltage for 2000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet following limits
Capacitance change Within士20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Within specified value
High Temperature Shelf Life After storage for 500 hours at 105°C With no voltage applied and test the stabilized capaitors at + 25°C,capacitors shall meet following limits
Capacitance change Within +20% of the initial measured value
Disiation Factor Less than 200% of the specified value
Leakage Current Less than 200% of the specified value

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 0


Company Profile

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 1



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.





Capacitor Use:

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 2High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 3



Packing:

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 4





Cooperative Company:

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 5

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 6



Our Certificate

High Temperature Circuits Miniature Capacitor 1000UF16V 10X16mm 7
