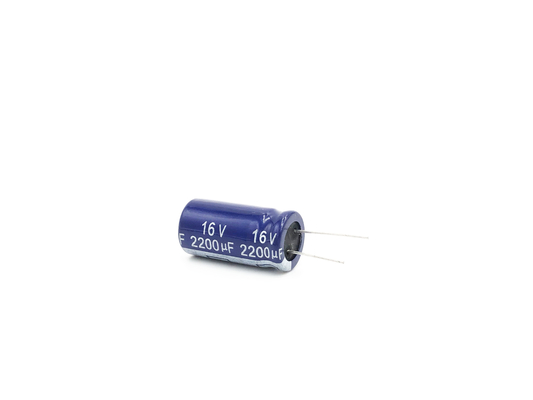

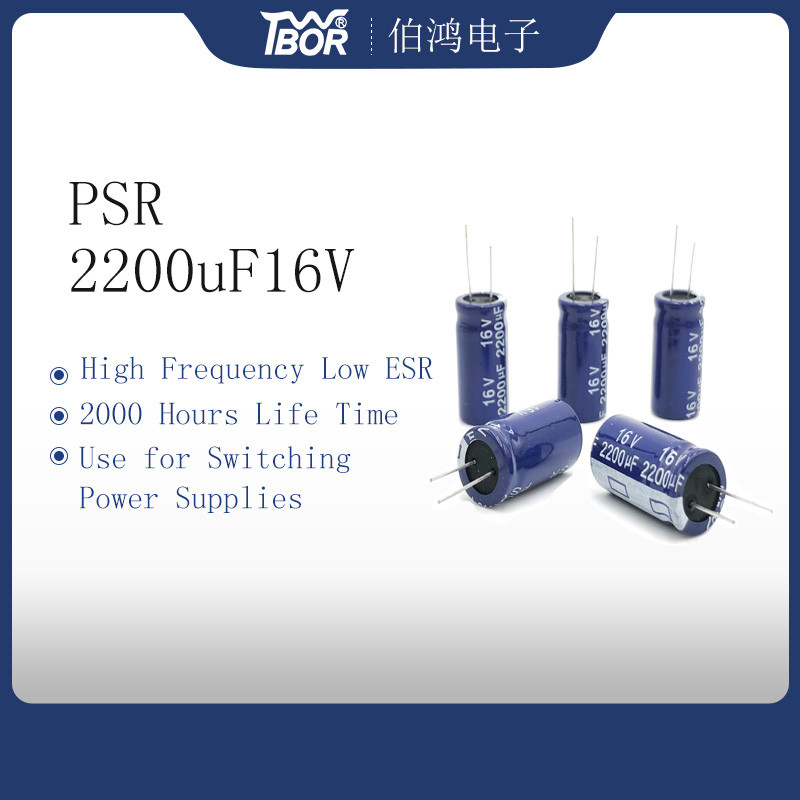

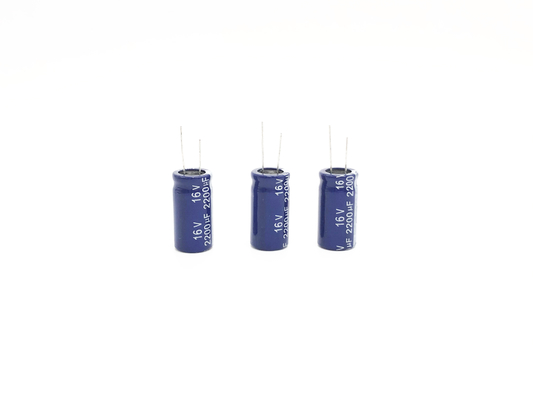

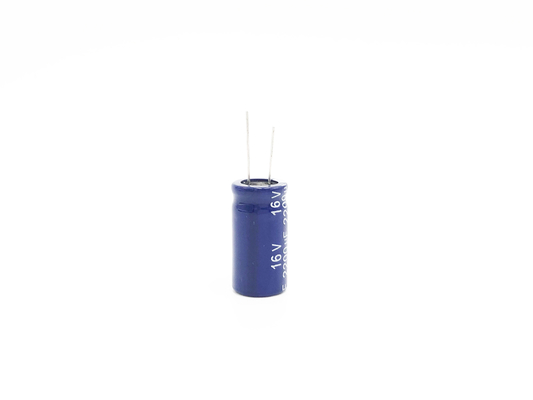

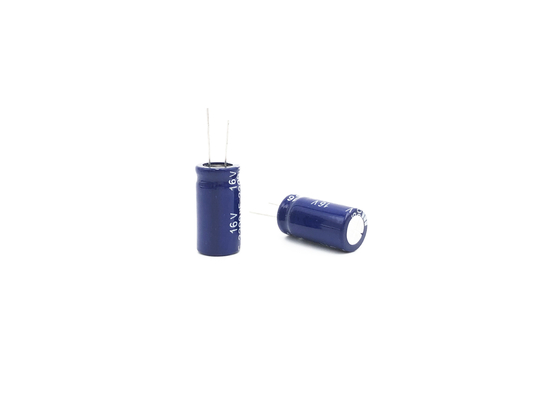

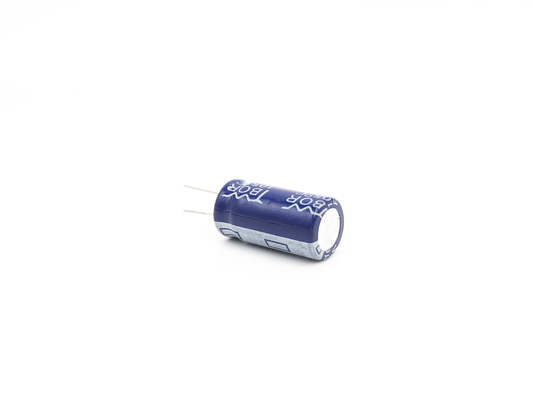

High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm

High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm
High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm

Large Image :  High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: PSR 2200UF16V 13X25
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 per month

High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V 13X25mm

Description
Model Number: PSR 2200UF16V 13X25 Capacitance: 2200uF
Voltage: 16V Tolerance: ±20%
Material: Aluminum Color: Blue
Supplier Type: Original Manufacturer Application: Switching Power Supplies
Advantage 1: High Frequency Loe ESR Advantage 2: Sample Provide By Free
Advantage 3: Factory Price Advantage 4: Delivery Fast
High Light:

Low ESR Aluminum Electrolytic Capacitor 2200UF16V

,

13X25mm high temperature electrolytic capacitors

,

2200UF16V high temperature electrolytic capacitors

High Frequency Low ESR Aluminum Electrolytic Capacitor 2200UF16V Miniature Capacitor



PRODUCT DESCRIPTION

Name Aluminum Electrolytic Capacitor
Style Number PSR33uF50V 6.3x11
MOQ 1000 PCS
Sample  Provide
Serial Model PSR Series



FEATURES

Low impedance at high frequency
Ideally suited for use ofswitching power supplies andother industrial electronic product appictions



SPECIFICATIONS

Item Key Features
Operating Temperature Range -40°C~+1059C
Rated Working Voltage Range 6.3VDC~ 100VDC
Nominal Capacitance Range 4.7uF~ 10000uF
Capacitance Tolerance +20%(M) (+ 25°C,100/120Hz)
Leakage Current LC<0.01CV or 3(uA)which is bigger should be adopted,2-minute application ofrated working voltage, (+ 25°C)
C:Nominal Capacitance in uF V:Rated Working Voltage in V LC: Leakage Curret in uA
Dissipation Factor Rated Working Voltage 6.3 10 16 25 35 50 63 100
DF(MAX (+25°C,100/120Hz) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF
High Temperature Load Life After applying rated working voltage for 2000-3000 hours at 105°C and test the stabilized capacitors at +25°C, capacitors shall meet following limits
Capacitane change Within士20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Withn specified value
High Temperature Shelf Life After storage for 500 hours at 105°C With no voltage applied and test the stabilized capacitors at + 25°C,capacitors shall meet following limits
Capacitance change Within士20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Less than 200% of the specified value
