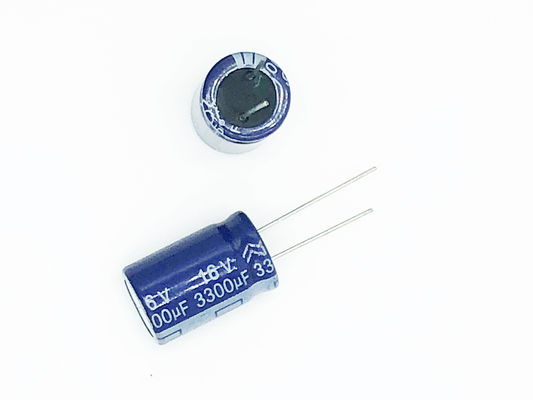

Product Details:
|
| Model Number: | PSR3300uF16V 16X25 | Capacitance: | 3300uF |
|---|---|---|---|
| Voltage: | 16V | Tolerance: | ±20% |
| Place Of Origin: | Zhao Qing China | Type: | Radial |
| Voltage Range: | 6.3V~100V | Capacitance Range: | 0.1uF~10000uF |
| Advantage 1: | High Frequency Loe ESR | Advantage 2: | Sample Provide By Free |
| Advantage 3: | Factory Price | Package: | Carton |
| High Light: | 3300UF16V Miniature Capacitor,3300UF16V Switching Power Supply Capacitor,PSR 3300UF 16V Capacitor |
||
PRODUCT DESCRIPTION
| Name | Aluminum Electrolytic Capacitor |
| Style Number | PSR33uF50V 6.3x11 |
| MOQ | 1000 PCS |
| Sample | Provide |
| Serial Model | PSR Series |
FEATURES
| Low impedance at high frequency |
| Ideally suited for use ofswitching power supplies andother industrial electronic product appictions |
SPECIFICATIONS
| Item | Key Features |
| Operating Temperature Range | -40°C~+1059C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC |
| Nominal Capacitance Range | 4.7uF~ 10000uF |
| Capacitance Tolerance | +20%(M) (+ 25°C,100/120Hz) |
| Leakage Current | LC<0.01CV or 3(uA)which is bigger should be adopted,2-minute application ofrated working voltage, (+ 25°C) | ||
| C:Nominal Capacitance in uF | V:Rated Working Voltage in V | LC: Leakage Curret in uA | |
| Dissipation Factor | Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 |
| DF(MAX (+25°C,100/120Hz) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |
| When normal capacitance is more than 1000uF, dissipation factor of 0.02 is added for every increase of 1000uF | |||||||||
| High Temperature Load Life | After applying rated working voltage for 2000-3000 hours at 105°C and test the stabilized capacitors at +25°C, capacitors shall meet following limits | |
| Capacitane change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Withn specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C With no voltage applied and test the stabilized capacitors at + 25°C,capacitors shall meet following limits | |
| Capacitance change | Within士20% of the initial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Less than 200% of the specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
