Product Details:
|
Model Number: | TRM6800uf80v 30x50 | Capacitance: | 6800UF |
---|---|---|---|
Voltage: | 80V | Tolerance: | ±20% |
Type: | Aluminum Electrolytic Capacitor | Package Type: | Standard |
Size: | 30x50mm | Working Hour: | 2000 Hours |
Temperature Range: | -40℃~+85℃ | Application: | Power Supply Filters |
Advantage 1: | Fast Delivery | Advantage 2: | Factory Price |
Advantage 3: | More Than 30 Years Experience Capacitor Producing | Advantage 4: | Sample Offered By Free |
High Light: | UPS Capacitor 6800uF 80V,6800uF 80V Power Supply Filter Capacitor,30x50mm UPS Capacitor |

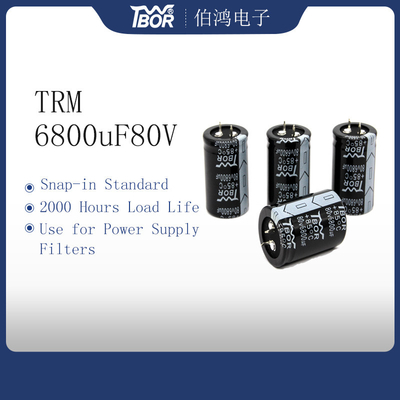

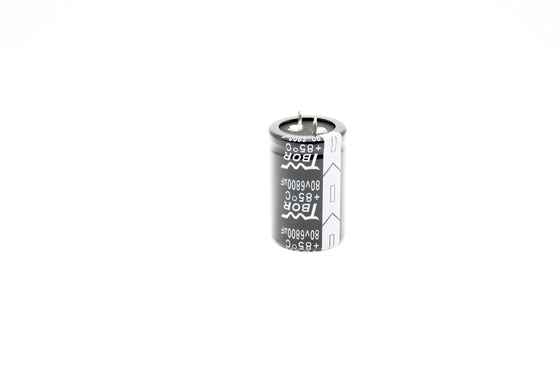

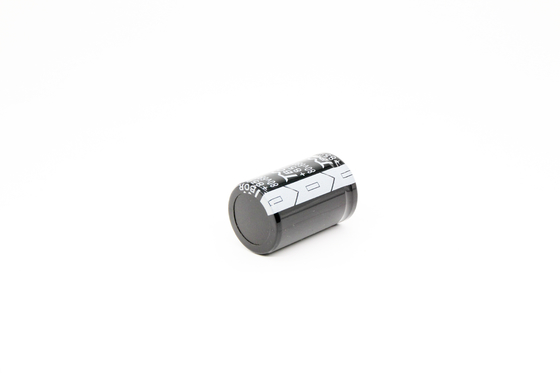

30x50mm UPS Capacitor Snap In Power Supply Filters Aluminum Capacitor
PRODUCT SPECIFICATION
TRM Series
Model Number | TRM6800uF80V 30x50 |
Capacitance Range | 47UF~68000UF |
Voltage Range | 10V~500V |
Tolerance | ±20% |
Temperature Range | -40℃~105℃ |
FEATURES
■85°C, snap- in standard product
■Explosion-proof structure
■Suited for switching power supply, communication equipment and other electronic products.
SPECIFICATIONS
Item | Key Feature | |
Operating Temperature Range | -40°C~+ 85°C | -25*°C~ + 85°C |
Rated Working Voltage Range | 10VDC ~ 100VDC | 160VDC~ 500VDC |
Nominal Capacitance Range | 1000uF ~ 82000uF | 47uF~ 1000uF |
Capacitance Tolerance | 土20%(M (+ 25°C,100/120Hz) |
Leakage Current | LC≤3,CV,5-minute aplication of ated working voltage,(+25*C) |
C: Nominal Capacitance in uF V:Rated Working Voltage in VL C:Leakage Current in uA |
Dissipation Factor | Rated Working Voltage(V) | 10 | 16 | 25 | 35 | 50 | 63 | 80 | 10 | 160~ 250 | 350~500 |
DF(MAX)(+ 25°C,100/120Hz) | 0.50 | 0.40 | 0.35 | 0.35 | 0.25 | 0.25 | 0.20 | 0.20 | 0.15 | 0.20 | |
For nominal capacitance of more than 1,000uF, add dissipation factor by 0.02 for every increase of 1,000uF. |
High Temperature Load Life | After applying rated working voltage to capacitors for 2,000 hours at 85°C and test the stabilized capacitors at + 25°C,the capacitors shall meet the following limits. | |
Capacitane change | Within +20 % of the initial measured value | |
Dissipation Factor | Less than 200% of the specified value | |
Leakage Current | Within specified value |
High Temperature Shelf Life | After storage for 500 hours at 85°C With no voltage applied and test the stabilized capacitors at + 25°C,the capacitors shall meet the following limits. | |
Capacitance change | Within土20 % of the initial measured value | |
Dissipation Factor | Less than 200% of the specified value | |
Leakage Current | Within specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
WHY CHOOSE US
1.Rich Experience for Capacitor Producing
We are a factory who has more that 30 years experience for capacitor producing.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.How Could I Get a Sample?
Samples can be offered by free, you can take if from our office by your express delivery.
4.Good Service
24 hours on time service.
5. why should you buy from us not from other suppliers?
Our quality is reliable, professional and low costs, with quick and perfect service to our guest.
