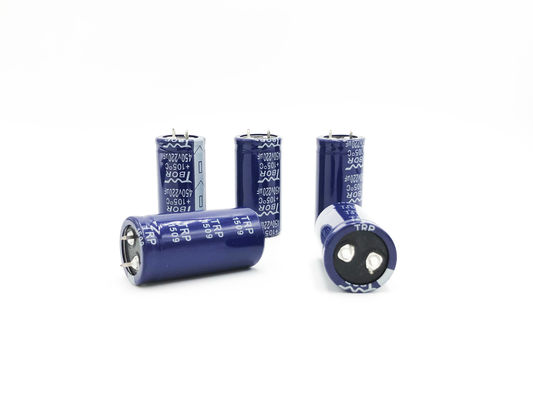

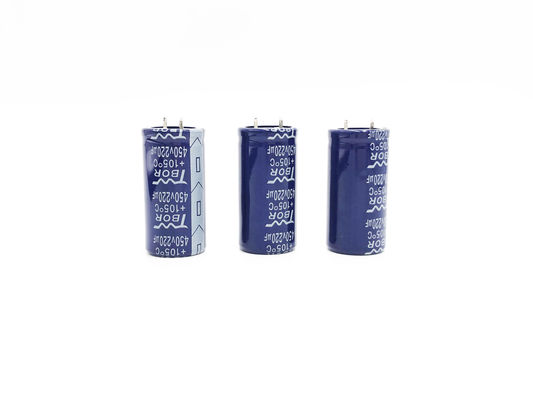

Product Details:
|
| Model Number: | TRP 220UF450V 30X35 | Tolerance: | ±20% |
|---|---|---|---|
| Place Of Origin: | Zhao Qing China | Supplier Type: | Original Manufacturer |
| Package Type: | Standard | Advantage: | Wide Temperature |
| Application: | Switching Power Supplies | ||
| High Light: | Switching Power Supply Capacitor 220UF 450V,Capacitor 220UF 450V ISO14001,Snap In Switching Power Supply Capacitor |
||
TRP Series
FEATURES
■ Wide temperature long life with snap-in terminal series.
■ Top safety vent construction.
■ Ideally suited for switching power supplies telecommunication and other electronic products.
SPECIFICATIONS
| Item | Key Feature | |
| Operating Temperature Range | -40°C~+ 105°C | -25°C~ +105°C |
| Rated Working Voltage Range | 10VDC ~ 100VDC | 160VDC ~ 450VDC |
| Nominal Capacitance Range | 1000uF ~ 68000uF | 47uF~ 1000uF |
| Capacitance Tolerance | 土20%(M)(+ 25°C,100/120Hz) | |
| Leakage Current | LC< 3,CV,with appication of rated working voltage 5 minutes,(25°C) |
||
| Nominal Capacitance in uF | Rated Working Volage in V | Leakage Current in uA | |
| Dissipation Factor | Rated Working voltage(V) | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 450 |
| DF(MAX (+25°C, 100/120Hz) | 0.50 | 0.40 | 0.35 | 0.35 | 0.25 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.20 | 0.20 | |
| For capacitance of more than 100r ,add0.02 for every increase of 1000uF | ||||||||||||||
| Load Life | Afer apingy ated working. vlage for 3000 hours at 105C and then being saihera +25°C,capacitors shall meet fllowin limits | |
| Capacitance change | Vitin t20 % of the nial measured value | |
| Dissipation Factor | Less than 200% of the specified value | |
| Leakage Current | Withn speified value | |
| Shelf Life | After storage for 500 hours at 105°C with no voltage pplied and then being slilied at +25°C, capacitors sall meet flowing limits | |
| Capacitancechange | Within 土20% of the ital measured value | |
| Dissipation Factor | Less than 200% of the specifed value | |
| Leakage Current | Less than 200% of the specifed value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. And our strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
