Product Details:
|
| Artical Number: | PSH 2.2UF400V 8X12 | Capacitance Range: | 1UF～220UF |
|---|---|---|---|
| Voltage Range: | 200V～450V | Tolerance: | ±20% |
| Temperature Range: | -40℃～+105℃ | Applications: | Electronic Ballast And Energy-save Lamp |
| Advantage 1: | Fast Delivery | Advantage 2: | Factory Price |
| Advantage 3: | High Ripple Current | Advantage 4: | Extremely Long Life |
| Current - Leakage: | Does Not Exceed The Standard Value | ESR (Equivalent Series Resistance): | Contact Us To Check Our Datasheet |
| Impedance: | Contact Us To Check Our Datasheet | ||
| High Light: | 2.2UF400V High Voltage Electrolytic Capacitor,8X12mm High Ripple Current Capacitors,High Voltage Electrolytic Capacitor 8X12mm |
||
PRODUCT SPECIFICATION
PSH Series

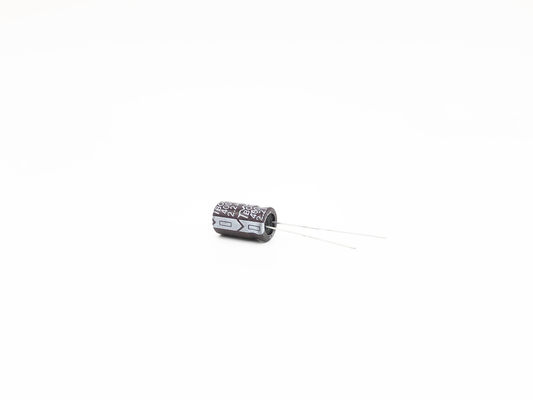

| Model Number | PSH 2.2UF400V 8X12 |
| Capacitance Range | 1UF～220UF |
| Voltage Range | 200V～450V |
| Tolerance | ±20% |
| Temperature Range | -40℃~105℃ |
FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL,electronic ballast and other electronic products
SPECIFICATIONS
| Item | Key Feature |
| Operating Temperature Range | -40°C~ +105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF ~ 220uF |
| Capacitance Tolerance | 20%(M)(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C) | ||
| C: Nominal Capacitance in uF | V: Rated Working Voltage in V | LC: Leakage C urrent in uA |
|
| Disspation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+25°C,100/120Hz) | 0.10 | 0.10 | 0.12 | 0.12 |
| highr Teperaure loaLife | After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capac itors at+ 25°C,the capacitors shall meet the fo llowing limits. |
|
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Less than 200 % of the specified value | |
Product Detail:
Company Profile:
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. Bor Hurng established its factory in Zhaoqing, Guangdong Province in 1988. Land occupation of the factory is 10,000㎡. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
FAQ
A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.
Q: What is the material of your products?
A: The material is aluminum.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need.
