Product Details:
|
| Model Number: | SMT 56uF35V 6.3X11 | Capacitance: | 56uF |
|---|---|---|---|
| Voltage: | 35V | Tolerance: | ±20% |
| Operating Temperature: | 130℃ | Operating Temperature: | -40°C~+130°C |
| Supplier Type: | Original Manufacturer, OEM | Terminal: | Radial |
| Delivery Time: | 7 Works Days | Advantage 1: | Fast Delivery |
| Advantage 2: | More Than 30 Years Experience Capacitor Producing | ||
| High Light: | 56uF High Frequency Capacitor,35V High Frequency Capacitor,56uF Low ESR Electrolytic Capacitor |
||

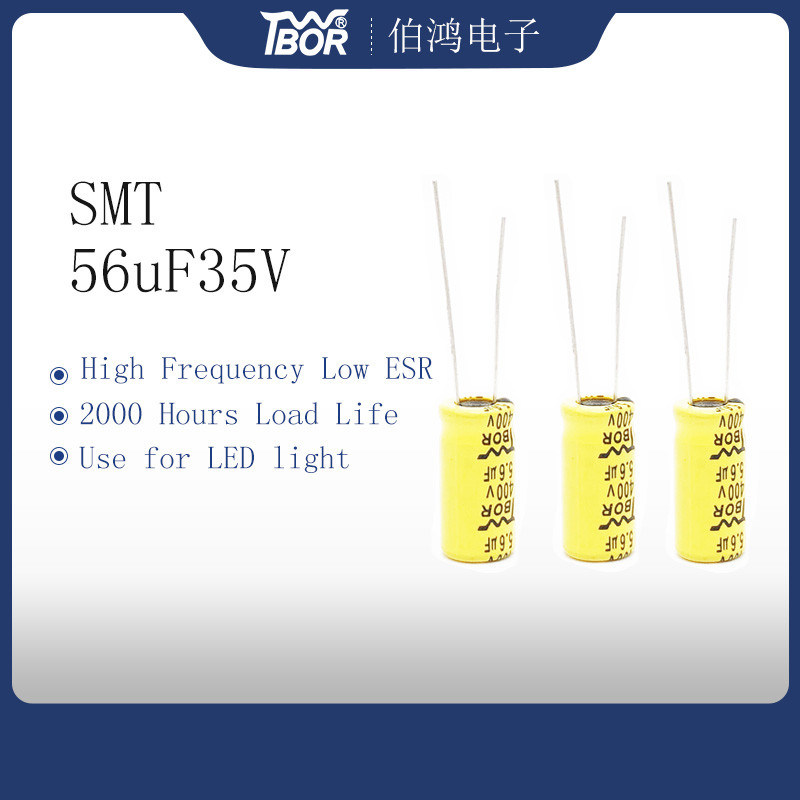

56uF35V High Temperature Capacitor High Frequency Low ESR Capacitor 6.3x11mm
PRODUCT SPECIFICATION
SMT Series
| Model Number | SMT 56uF35V 6.3X11 |
| Capacitance Range | 0.1UF～220UF |
| Voltage Range | 6.3V～500V |
| Tolerance | ±20% |
| Temperature Range | -40℃~105℃ |
●Key Features
| Operating Temperature Range | -40°C~+ 130°C | -40°C~+130°C | -25°C~+ 130°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC- 400VDC | 450VDC |
| Nominal Capacitance Range | 4.7uF~ 10000uF |
| Capacitance Tolerance | +20%(M (+ 25°C,100/120Hz) |
Leakage Current
| LC<0.01CV or 3(uA)which is bigger should be adopt ed,2 minute application of rated working voltage(+ 25°C) |
LC≤0.03CV+ 10,2 minute application of rated workin g voltage, (+25*C) |
|
| Nominal Capacitance in uF | Rated Working Voltage in V | Leakage Current in uA |
Dissipation Factor
| RatedWorking Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450 |
| DFMX(+250C10/120HZ) | 0.35 | 0.30 | 0.28 | 0.24 | 020 | 0.18 | 0.18 | 0.18 | 0.15 | 0.15 | 0.15 | 0.20 | 0.20 |
High Temperature Load Life
After applying rated working voltage for 2000 hours at 130°C and then being stabilized at + 25°C,capacitors shall met following limits
| Capacitance change | Within土20% of the initial measured value |
| Disipation Factor | Less than 300% of the specified value |
| Leakage Current | Within specifed value |
High Temperature Shelf Life Hier sorore for 500 hours at 130C With no voltage applied and then being sbilill at 25Capacitors. shall meet flowing limits
| Capacitance change | Within士20% of the initial measured value |
| Disspation Factor | Less than 300% of the specified value |
| Leakage Current | Less than 300% of the specified value |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng has an excellent team of R&D experts and workers with a complete set of fully automatic capacitor production lines and testing equipment imported from Japan and Taiwan. bor Hurng's strongest product is the aluminium electrolytic capacitor for lighting, which features small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good solderability. The capacitors are suitable for use in CFLs, LED lamps, HID lamps, electronic ballasts and UPS. Due to the above advantages, Bor Hung enjoys a high reputation at home and abroad. Apart from mainland China, our products are exported to North America, South America, Europe, Middle East, Australia, India, Russia, Singapore and other regions and countries.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
FAQ
A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.
Q: What is the material of your products?
A: The material is aluminum.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need.
