56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors
56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors

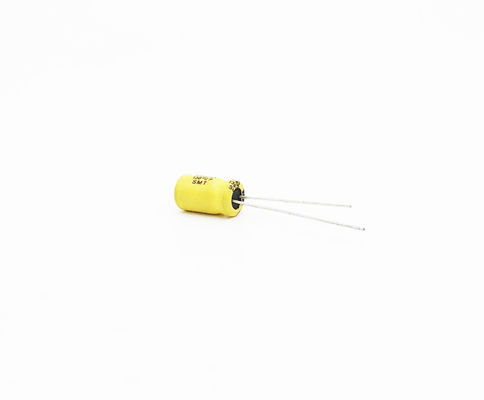

Large Image :  56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO14001 RoHS
Model Number: SMT 56UF35V 6.3X11
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 per month

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors

Description
Capacitance: 56UF Voltage: 35V
Tolerance: ±20% Operating Temperature: 130℃
Operating Temperature: -40°C~+130°C Sample Service: Support
Material: Aluminum Color: Yellow
Size: 6.3X11mm ESR (Equivalent Series Resistance): Contact Us To Check Our Datasheet
Impedance: Contact Us To Check Our Datasheet Application: High Temperature Circuits
High Light:

56UF35V SMT Electrolytic Capacitor

,

6.3x11mm High Temperature Electrolytic Capacitors

,

SMT Electrolytic Capacitor 6.3x11mm

High Frequency Low ESR LED Light Capacitor 56UF35V 6.3x11mm



PRODUCT SPECIFICATION



SMT Series

Model Number SMT 56UF35V 6.3X11
Capacitance Range 0.1UF~10000UF
Voltage Range 6.3V~450V
Tolerance ±20%
Temperature Range -40℃~105℃



●Features:
1. 130°C,Low impedance at high frequency.
2. Ideally suited for use ofswitching power supplies and other industrialelectronic product applications.
3. Loda life of2000 hours at 130°CSPECIFICATIONS Item.


●Key Features

Operating Temperature Range -40°C~+ 130°C -40°C~+130°C -25°C~+ 130°C
Rated Working Voltage Range 6.3VDC~ 100VDC 160VDC- 400VDC 450VDC
Nominal Capacitance Range 4.7uF~ 10000uF
Capacitance Tolerance +20%(M (+ 25°C,100/120Hz)


Leakage Current

LC<0.01CV or 3(uA)which is bigger should be adopt
ed,2 minute application of rated working voltage(+
25°C)

LC≤0.03CV+ 10,2 minute application of rated workin
g voltage, (+25*C)
Nominal Capacitance in uF Rated Working Voltage in V Leakage Current in uA



Dissipation Factor

RatedWorking Voltage(V) 6.3 10 16 25 35 50 63 100 160 200 250 400 450
DFMX(+250C10/120HZ) 0.35 0.30 0.28 0.24 020 0.18 0.18 0.18 0.15 0.15 0.15 0.20 0.20


High Temperature Load Life
After applying rated working voltage for 2000 hours at 130°C and then being stabilized at + 25°C,capacitors shall met following limits

Capacitance change Within土20% of the initial measured value
Disipation Factor Less than 300% of the specified value
Leakage Current Within specifed value



High Temperature Shelf Life

Hier sorore for 500 hours at 130C With no voltage applied and then being sbilill at 25Capacitors. shall meet flowing limits

Capacitance change Within士20% of the initial measured value
Disspation Factor Less than 300% of the specified value
Leakage Current Less than 300% of the specified value

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 056UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 1



Product Details:

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 256UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 356UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 456UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 5




Company Profile

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 6



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.



Capacitor Use:

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 756UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 8



Packing:

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 9





Cooperative Company:

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 10

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 11



Our Certificate

56UF35V SMT Electrolytic Capacitor 6.3x11mm High Temperature Electrolytic Capacitors 12
