Product Details:
|

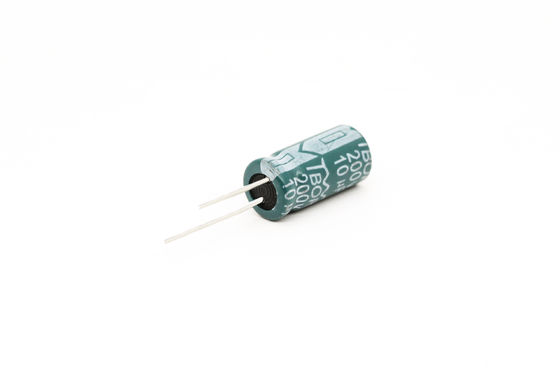

Model Number: | PST10uf200v 10x16 | Capacitance: | 10UF |
---|---|---|---|
Voltage: | 200V | Type: | Aluminum Electrolytic Capacitor |
Material: | Aluminum | Color: | Green |
Size: | 10x16mm | Sample Service: | Support |
High Light: | Green 10x16mm LED Light Capacitor,Capacitor 10uf 200v 10000 Hours,LED Light Capacitor 10uf 200v |
PST series
FEATURES
■ 105*C,High ripple current,8000-10000 hours extremely long life.
■ Suited for CFL, electronic ballast and other electronic products.
SPECIFICATIONS
Item | Key Features |
Operating Temperature Range | -40°C~+105°C |
Rated Working Voltage Range | 200VDC ~ 450VDC |
Nominal Capacitance Range | 1uF~ 220uF |
Capacitance Tolerance | 土20%(M(+ 25°C,100/120Hz) |
Leakage Current | LC <0.02CV+ 10 uA,2-minute application of ra ted working voltage,(+ 25°C) |
||
C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC:Leakage Current in uA |
Dissipation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
DF (MAX)(+ 25°C,100/120Hz) | 0.08 | 0.08 | 0.10 | 0.10 |
High Temperature Load Life | After applying rated working voltage with rated ripple current for 8000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet the following limits. | |
Capacitance change | Within土20 % of the initial measured value | |
Dissipation Factor | Less than 300 % of the specified value | |
Leakage Current | Within specified value |
High Temperature Shelf Life | After storage for 500 hours at 105 C with no voltage applied and and test the stabilized capacitors at+ 25°C,capacitors shal meet the following limits | |
Capacitance change | Within土20% of the initial measured value | |
Dissipation Factor | Less than 200 % of the specified value | |
Leakage Current | Within specified value |
