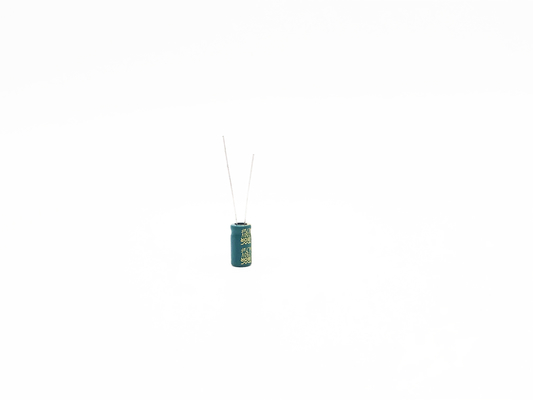

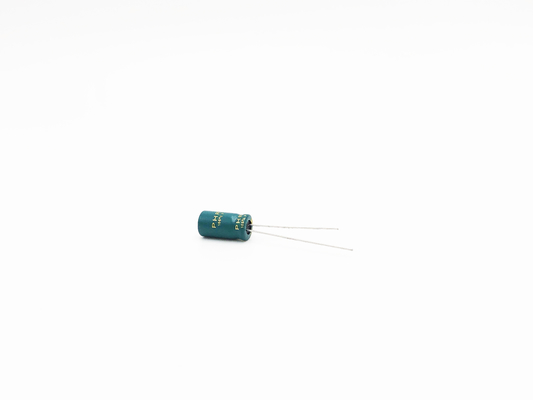

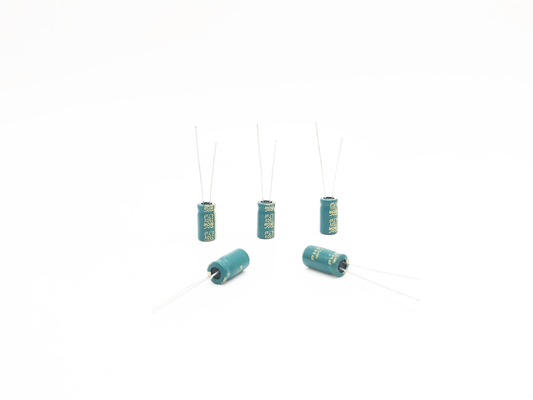

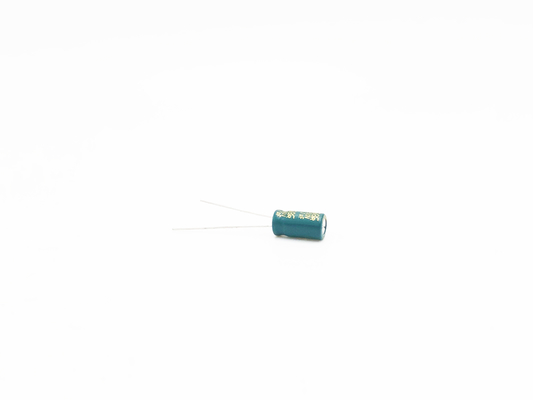

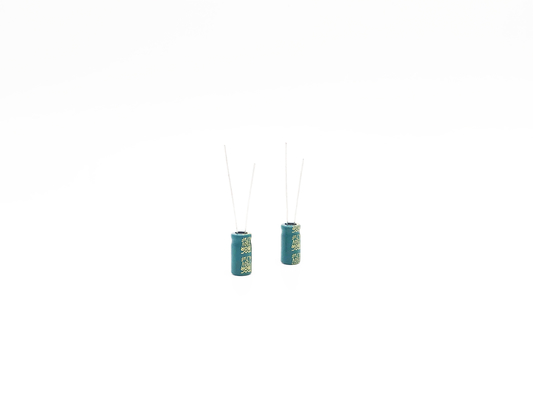

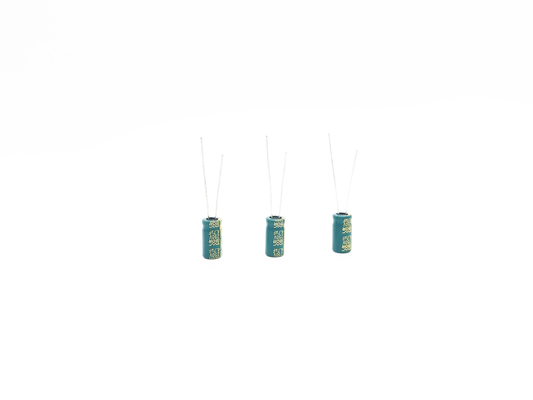

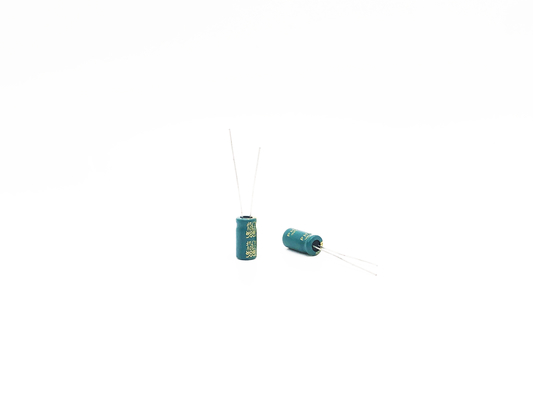

Product Details:
|
| Model Number: | PHR 4.7UF250V 8X9 | Capacitance: | 4.7UF |
|---|---|---|---|
| Voltage: | 250V | Load Life: | 5000 Hours |
| Operating Temperature: | -40°C ~+105°C | Supplier Type: | Original Manufacturer |
| Application: | LED Light | ESR (Equivalent Series Resistance): | Contact Us To Check Our Datasheet |
| Impedance: | DeliveryContact Us To Check Our Datasheet Fast | Place Of Origin: | Zhao Qing China |
| Package: | Standard Carton Packing | Terminal: | Radial |
| Capacitor Shape: | Cylinder | ||
| High Light: | 8x9MM Al Electrolytic Capacitor,4.7 uf 250v capacitor 8x9MM,4.7UF 250V Al Electrolytic Capacitor |
||

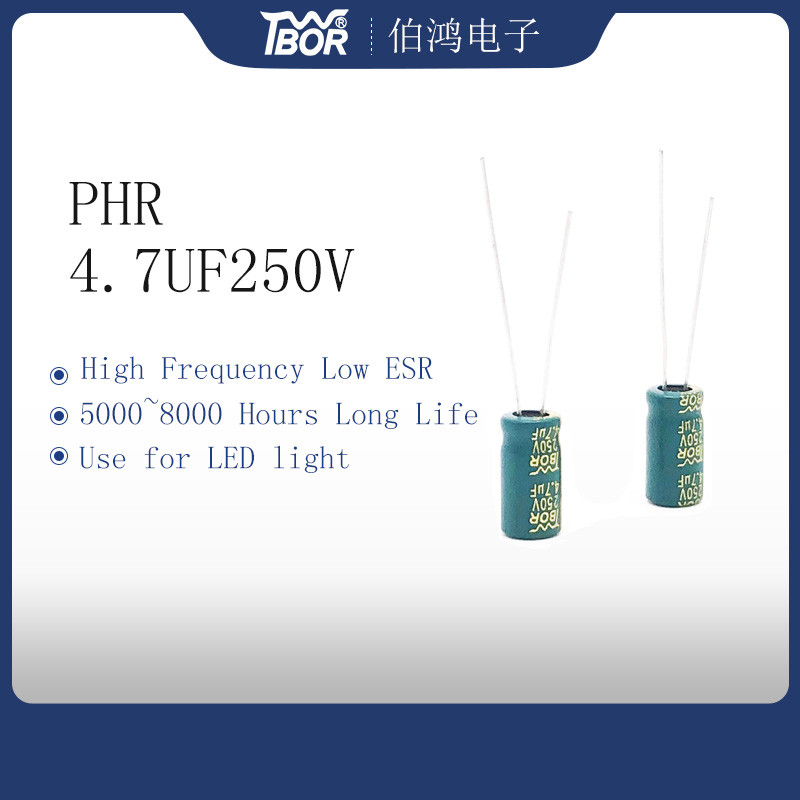

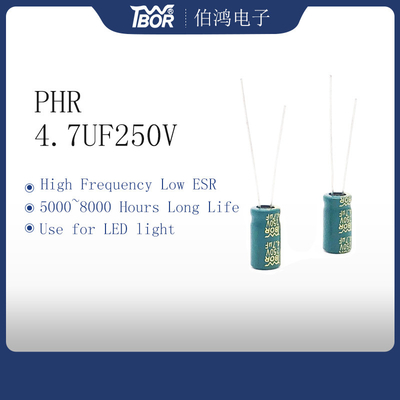

PHR series
■Low impedance at high frequency.
■Ideally suited for use ofswitchingpower supplies andother industrial electronic product applications.
■Loda life of 5000~ 8000 hours at 105°C
SPECIFICATIONS
Key Features
| Operating Temperature Range | -40°C~+ 105°C | -40°C~+105°C | -25°C~+ 105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC- 450VDC | 450-500VDC |
| Nominal Capacitance Range | 4.7uF~ 10000uF |
| Capacitance Tolerance | +20%(M) (+ 25°C,100/120Hz) |
Leakage Current
| LC<0.01CV or 3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C) | LC≤0.02CV+ 10,2 minute application of rated workin g voltage, (+25°C) |
|
| Nominal Capacitance in uF | Rated Working Voltage in V | Leakage Current in uA |
Dissipation Factor
| RatedWorking Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450-500 |
| DFMX(+25°C,100/120HZ) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.15 | 0.15 | 0.15 | 0.18 | 0.20 |
High Temperature Load Life
After applying rated working voltage for 5000-8000 hours at 105°C and then being stabilized at + 25°C,capacitors shall meet following limits
| Capacitance change | Within土20% of the initial measured value |
| Disipation Factor | Less than 300% of the specified value |
| Leakage Current | Within specifed value |
High Temperature Shelf Life
Hier sorore for 500 hours at 105°C With no voltage applied and then being sbilill at +25°C, Capacitors shall meet flowing limits
| Capacitance change | Within士20% of the initial measured value |
| Disspation Factor | Less than 200% of the specified value |
| Leakage Current | Less than 200% of the specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
