Product Details:
|

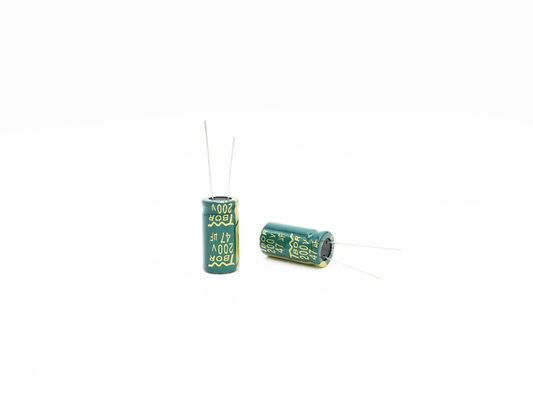

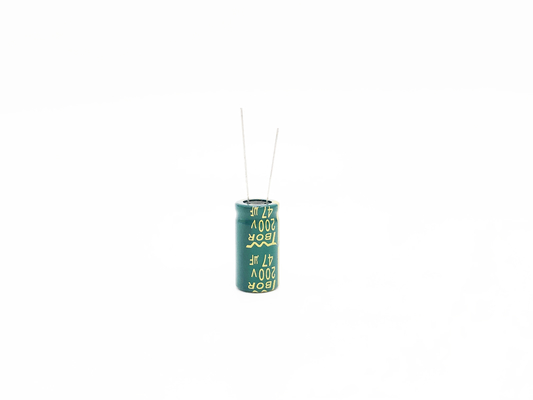

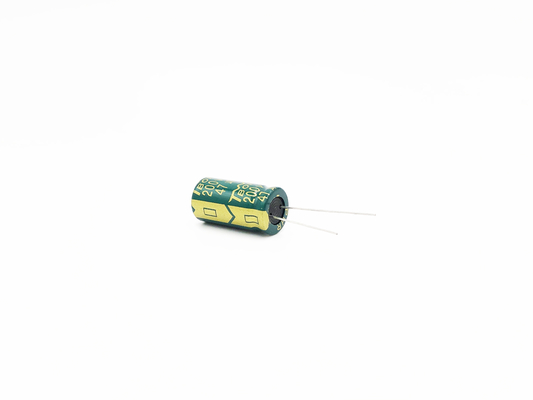

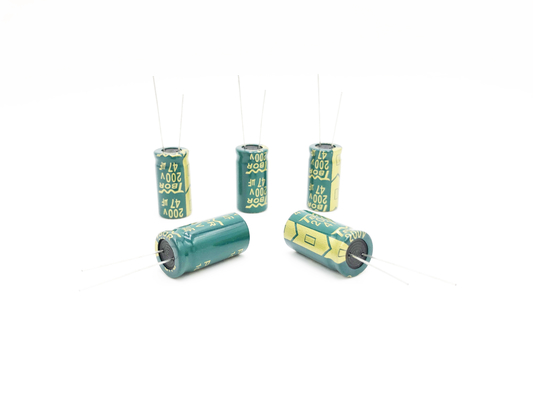

Model Number: | PHR 47UF200V 12X20 | Capacitance: | 47UF |
---|---|---|---|
Voltage: | 200V | Operating Temperature: | -40°C ~+105°C |
Application: | LED Light | Current - Leakage: | Does Not Exceed The Standard Value |
Products Supply: | Original New | Place Of Origin: | Zhao Qing China |
Type: | Aluminum Electrolytic Capacitor | ||
High Light: | High Frequency Electrolytic Capacitor 47UF 200V,ISO14001 High Frequency Electrolytic Capacitor,Capacitor 47UF 200V 5000 Hours Lifetime |

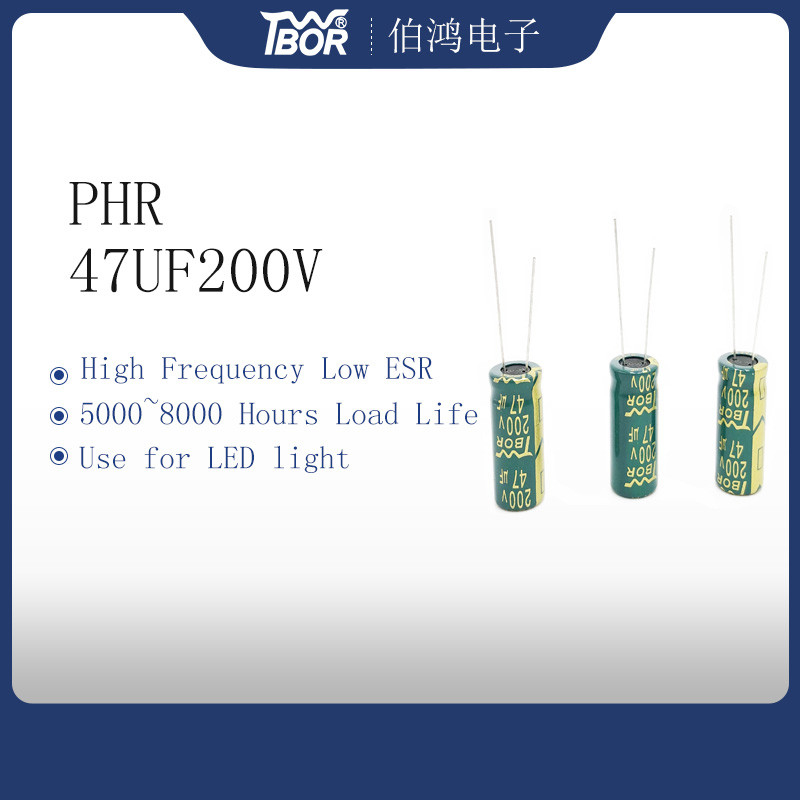

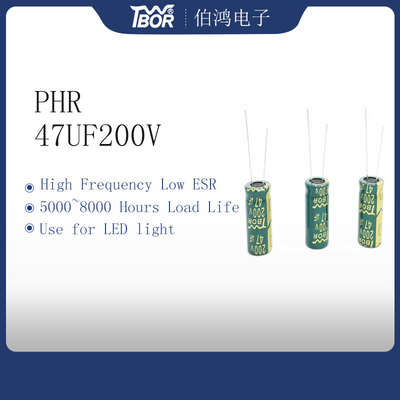

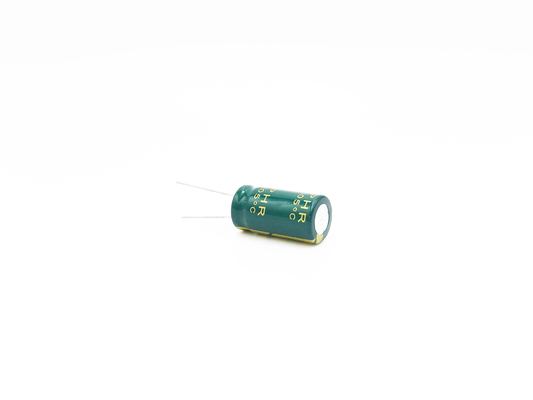

PHR Series
■Low impedance at high frequency.
■Ideally suited for use ofswitchingpower supplies andother industrial electronic product applications.
■Load life of 5000~ 8000 hours at 105°C
SPECIFICATIONS
Key Features
Operating Temperature Range | -40°C~+ 105°C | -40°C~+105°C | -25°C~+ 105°C |
Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC- 450VDC | 450-500VDC |
Nominal Capacitance Range | 4.7uF~ 10000uF |
Capacitance Tolerance | +20%(M) (+ 25°C,100/120Hz) |
Leakage Current
LC<0.01CV or 3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C) | LC≤0.02CV+ 10,2 minute application of rated workin g voltage, (+25°C) |
|
Nominal Capacitance in uF | Rated Working Voltage in V | Leakage Current in uA |
Dissipation Factor
RatedWorking Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450-500 |
DFMX(+25°C,100/120HZ) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.15 | 0.15 | 0.15 | 0.18 | 0.20 |
High Temperature Load Life
After applying rated working voltage for 5000-8000 hours at 105°C and then being stabilized at + 25°C,capacitors shall meet following limits
Capacitance change | Within土20% of the initial measured value |
Disipation Factor | Less than 300% of the specified value |
Leakage Current | Within specifed value |
High Temperature Shelf Life
Hier sorore for 500 hours at 105°C With no voltage applied and then being sbilill at +25°C, Capacitors shall meet flowing limits
Capacitance change | Within士20% of the initial measured value |
Disspation Factor | Less than 200% of the specified value |
Leakage Current | Less than 200% of the specified value |
Our Certificate
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡.The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
