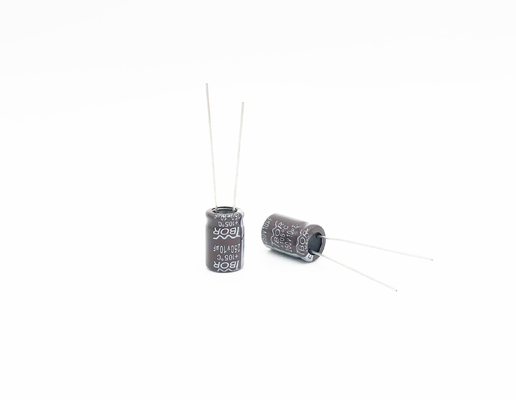

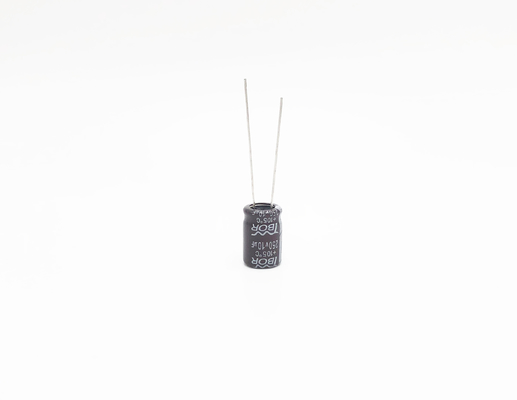

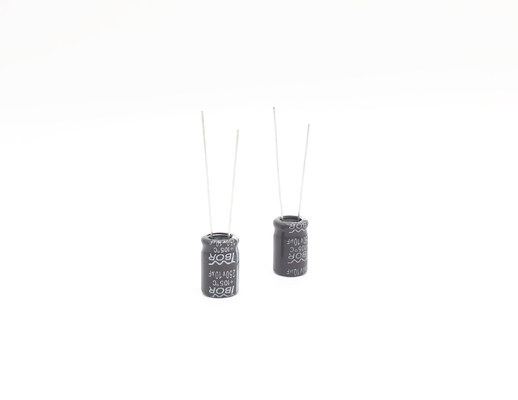

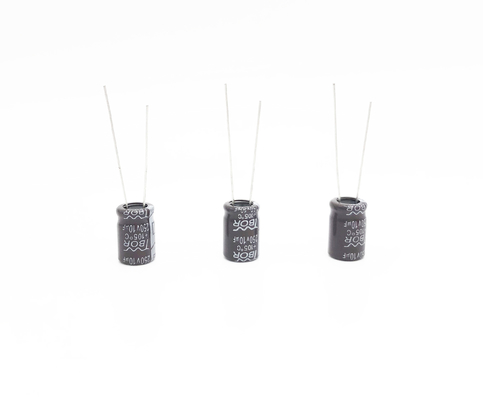

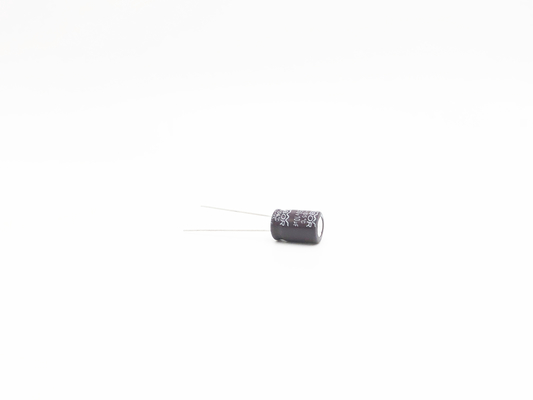

Product Details:
|
| Artical Number: | PSH 10UF250V 10X13 | Temperature Range: | -40℃～+105℃ |
|---|---|---|---|
| Applications: | CFL | Certificate: | ISO9001 ISO 14001 RoHS |
| Sample Service: | Support | Type: | Aluminum Electrolytic Capacitor |
| Place Of Origin: | Zhao Qing China | Specification: | 10X13mm |
| Package: | Cartons/Customized | ||
| High Light: | 10X13MM Aluminum Electrolytic Capacitor,CFL 10UF 250V Capacitor,Aluminum Electrolytic Capacitor 10UF 250V |
||
PSH Series
FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL,electronic ballast and other electronic products
SPECIFICATIONS
| Item | Key Feature |
| Operating Temperature Range | -40°C~ +105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF ~ 220uF |
| Capacitance Tolerance | 20%(M)(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C) | ||
| C: Nominal Capacitance in uF | V: Rated Working Voltage in V | LC: Leakage C urrent in uA |
|
| Disspation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+25°C,100/120Hz) | 0.10 | 0.10 | 0.12 | 0.12 |
| highr Teperaure loaLife | After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capac itors at+ 25°C,the capacitors shall meet the fo llowing limits. |
|
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Less than 200 % of the specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. Bor Hurng established its factory in Zhaoqing, Guangdong Province in 1988. Land occupation of the factory is 10,000㎡. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc..
