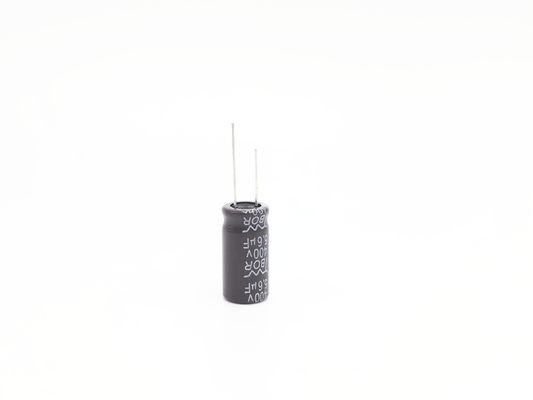

Product Details:
|
| Artical Number: | PSH 5.6UF400V 10X16 | Capacitance: | 5.6UF |
|---|---|---|---|
| Voltage: | 400V | Tolerance: | ±20% |
| Temperature Range: | -40℃～+105℃ | Supplier Type: | Factory |
| Material: | Aluminum | Color: | Brown |
| Size: | 10X16mm | Type: | Aluminum Electrolytic Capacitor |
| High Light: | 5000 Hours Extremely long life Capacitor,5.6UF 400V Radial Lead Electrolytic Capacitors,Long Life Capacitor 5.6UF 400V |
||
PSH Series
FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL, electronic ballast and other electronic products
SPECIFICATIONS
| Item | Key Feature |
| Operating Temperature Range | -40°C~ +105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF ~ 220uF |
| Capacitance Tolerance | 20%(M)(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C) | ||
| C: Nominal Capacitance in uF | V: Rated Working Voltage in V | LC: Leakage C urrent in uA | |
| Disspation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+25°C,100/120Hz) | 0.10 | 0.10 | 0.12 | 0.12 |
| highr Teperaure loaLife | After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capac itors at+ 25°C,the capacitors shall meet the fo llowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Less than 200 % of the specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng is one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
