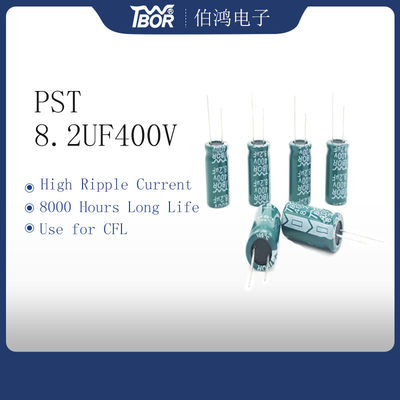

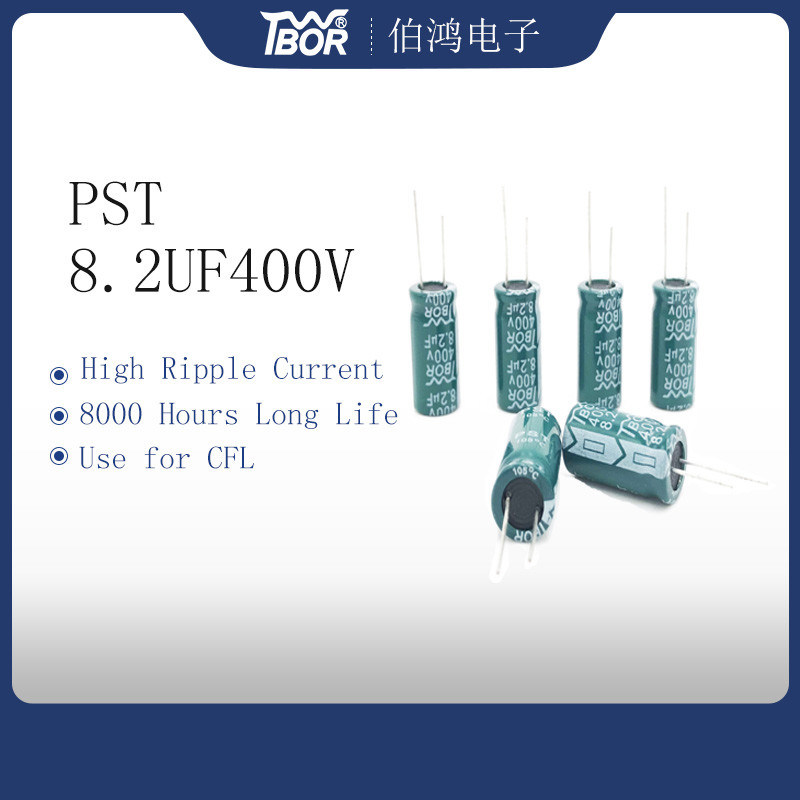

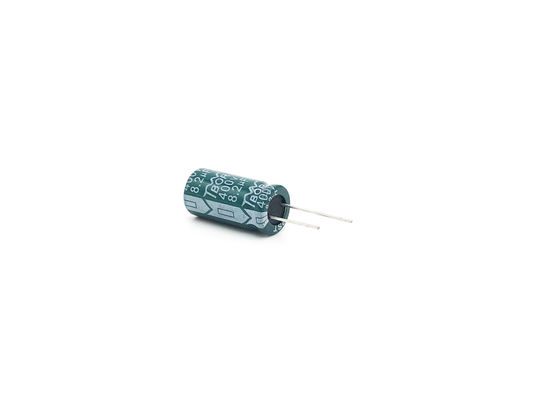

Product Details:
|
| Artical Number: | PST 8.2UF400V 13X20 | Capacitance: | 8.2UF |
|---|---|---|---|
| Voltage: | 400V | Tolerance: | ±20% |
| Operating Temperature: | -40℃~+105℃ | Voltage Range: | 200V~450V |
| Capacitance Range: | 1uF~220uF | Sample Service: | Support |
| Type: | Aluminum Electrolytic Capacitor | ESR (Equivalent Series Resistance): | Contact Us To Check Our Datasheet |
| Impedance: | Contact Us To Check Our Datasheet | Application: | Electronic Ballast And CFL |
| High Light: | 400V High Ripple Current Electrolytic Capacitor,High Ripple Current Electrolytic Capacitor,13X20mm 8.2UF 400V Capacitor |
||
PRODUCT SPECIFICATION
PST series
| Model Number | PST 8.2UF400V 13X20 |
| Capacitance Range | 1UF~220UF |
| Voltage Range | 200V~450V |
| Tolerance | ±20% |
| Temperature Range | -40℃~105℃ |
FEATURES
■ 105*C,High ripple current,8000-10000 hours extremely long life.
■ Suited for CFL, electronic ballast and other electronic products.
SPECIFICATIONS
| Item | Key Features |
| Operating Temperature Range | -40°C~+105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF~ 220uF |
| Capacitance Tolerance | 土20%(M(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of ra ted working voltage,(+ 25°C) |
||
| C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC:Leakage Current in uA | |
| Dissipation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+ 25°C,100/120Hz) | 0.08 | 0.08 | 0.10 | 0.10 |
| High Temperature Load Life | After applying rated working voltage with rated ripple current for 8000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet the following limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Dissipation Factor | Less than 300 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105 C with no voltage applied and and test the stabilized capacitors at+ 25°C,capacitors shal meet the following limits | |
| Capacitance change | Within土20% of the initial measured value | |
| Dissipation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors.The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
