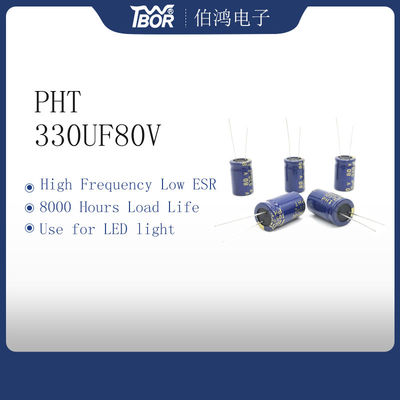

Product Details:
|
Artical Number: | PHT 330UF80V 13X20 | Capacitance: | 330uF |
---|---|---|---|
Voltage: | 80V | Tolerance: | ±20% |
Operating Temperature: | -40℃~+105℃ | Type: | Aluminum Electrolytic Capacitor |
Load Life: | 8000 Hours | Material: | Aluminum |
Color: | Blue | Place Of Origin: | Zhao Qing China |
Package: | Standard Carton | ||
High Light: | LED Light Capacitor ISO9001 RoHS,330UF80V LED Light Capacitor,13x20MM 330uf 80v Capacitor |
PHT series
FEATURES
1. Low impedance at high frequency.
2. Ideally suited for use ofswitching power supplies andother industrialelectronic product applications.
3. Load life of 8000~ 10000 hours at 105°C
SPECIFICATIONS
Key Features
Operating Temperature Range | -40°C~+ 105°C | -40°C~+ 105°C | -25°C~+ 105°C |
Rated Working Voltage Range | 6.3VDC~ 100VDC | 1 60VDC ~450VDC | 450VDC ~ 500VDC |
Nominal Capacitance Range | 4.7uF ~ 10000uF |
Capacitance Tolerance | 士20%(M) (+ 25°C,100/120Hz) |
Leakage Current
LC≤0.01CV or3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C) | LC≤0.02CV+ 10,2 minute appication of rated working voltage, (+25°C) | |
Nominal Capacitance in uF | Rated working Voltage in V | Leakage Current in uA |
Dissipation Factor
Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450-500 |
DF(MAX (+25*C,100/120Hz) | 022 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.15 | 0.15 | 0.15 | 0.18 | 0.20 |
For cpactance of more than 1000 uF, add 0.2 for every increase of 1000 uF |
High Temperature Load Life
After applying rated working voltage for 8000-10000 hours at 105°C and then being stabilized at +25°C,capacitors shall met following Iimits
Capacitance change | Within 20% of teinitial measured value |
Dissipation Factor | Les than 200% of the specified value |
Leakage Currnt | Within specified value |
High Temperature Shelf Life
After storage for 500 hours at 105°C With no voltage applied and then being stabilized at+ 25°C, capacitors shall meet following imits
Capacitance change | Within + 20% of the initial measured value |
Dissipation Factor | Less than 200% of the specified value |
Leakage Current | Less than 200% of the specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. And our strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
