10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance

Certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
I'm Online Chat Now

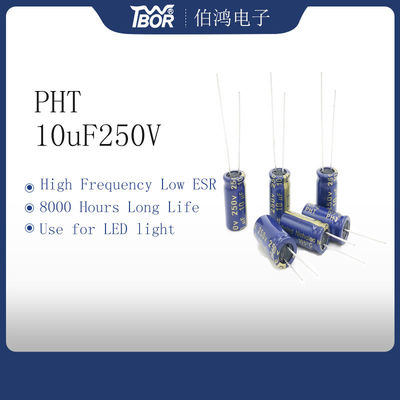

10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance

10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance
10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance

Large Image :  10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: PHT 10UF250V 8X16
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 per month

10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance

Description
Artical Number: PHT 10UF250V 8X16 Tolerance: ±20%
Temperature Range: -40℃~+105℃ Type: Radial
Voltage Range: 6.3V~500V Supplier Type: Factory
Application: LED Light Design: Original
Load Life: 8000 Hours Place Of Origin: Zhao Qing China
Material: Aluminum Color: Navy
High Light:

8x16mm Radial Electrolytic Capacitors

,

10uf 250v capacitor 20% Tolerance

,

10UF250V Radial Electrolytic Capacitors

10UF250V Large Capacitance LED Light Capacitor 8x16 Radial Capacitor



PHT series



FEATURES
1.Low impedance at high frequency.

2.Ideally suited for use of switching power supplies and other industrial electronic product applications.

3.Load life of 8000~ 10000 hours at 105°C



SPECIFICATIONS


Key Features

Operating Temperature Range -40°C~+ 105°C -40°C~+ 105°C -25°C~+ 105°C
Rated Working Voltage Range 6.3VDC~ 100VDC 1 60VDC ~450VDC 450VDC ~ 500VDC
Nominal Capacitance Range 4.7uF ~ 10000uF
Capacitance Tolerance 士20%(M) (+ 25°C,100/120Hz)





Leakage Current

LC≤0.01CV or3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C)   LC≤0.02CV+ 10,2 minute appication of rated working voltage, (+25°C)
Nominal Capacitance in uF Rated working Voltage in V Leakage Current in uA


Dissipation Factor

Rated Working Voltage 6.3 10 16 25 35 50 63 100 160 200 250 400 450-500
DF(MAX (+25*C,100/120Hz) 022 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.15 0.15 0.18 0.20
For cpactance of more than 1000 uF, add 0.2 for every increase of 1000 uF


High Temperature Load Life


After applying rated working voltage for 8000-10000 hours at 105°C and then being stabilized at +25°C,capacitors shall met following Iimits

Capacitance change Within 20% of teinitial measured value
Dissipation Factor Les than 200% of the specified value
Leakage Currnt Within specified value



High Temperature Shelf Life


After storage for 500 hours at 105°C With no voltage applied and then being stabilized at+ 25°C, capacitors shall meet following imits

Capacitance change Within + 20% of the initial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Less than 200% of the specified value

10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 0



10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 1








Company Profile

10UF 250V 8x16mm Radial Electrolytic Capacitors 20% Tolerance 2



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng  established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
