Product Details:
|
| Artical Number: | PHT1UF200V 6.3x11 | Capacitance: | 1UF |
|---|---|---|---|
| Voltage: | 200V | Tolerance: | ±20% |
| Temperature Range: | -40℃～+105℃ | Lifetime: | 8000 Hours |
| Certificate: | ISO9001 ISO 14001 RoHS | Application: | LED Light |
| Sample Service: | Support | Advantage 1: | Fast Delivery |
| Advantage 2: | Factory Price | Advantage 3: | More Than 30 Years Experience Capacitor Producing |
| High Light: | 1UF200V Low ESR Aluminum Electrolytic Capacitors,Aluminum Electrolytic Capacitors 6.3x11mm,8000 Hours 1UF 200V Capacitor |
||

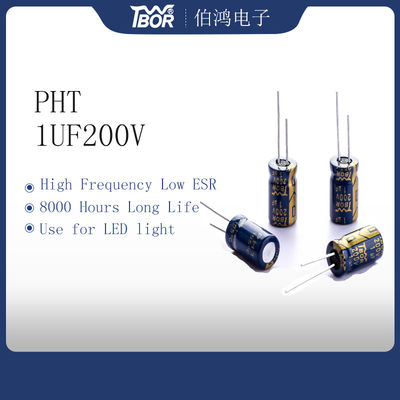

PHT series
FEATURES
1. Low impedance at high frequency.
2. Ideally suited for use of switching power supplies andother industrialelectronic product applications.
3. Loda life of8000~ 10000 hours at 105°C
SPECIFICATIONS
Key Features
| Operating Temperature Range | -40°C~+ 105°C | -40°C~+ 105°C | -25°C~+ 105°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 1 60VDC ~450VDC | 450VDC ~ 500VDC |
| Nominal Capacitance Range | 4.7uF ~ 10000uF |
| Capacitance Tolerance | 士20%(M) (+ 25°C,100/120Hz) |
Leakage Current
| LC≤0.01CV or3(uA)which is bigger should be adopted,2 minute application of rated working voltage(+25°C) | LC≤0.02CV+ 10,2 minute appication of rated working voltage, (+25°C) | |
| Nominal Capacitance in uF | Rated working Voltage in V | Leakage Current in uA |
Dissipation Factor
| Rated Working Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450-500 |
| DF(MAX (+25*C,100/120Hz) | 022 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.15 | 0.15 | 0.15 | 0.18 | 0.20 |
| For cpactance of more than 1000 uF, add 0.2 for every increase of 1000 uF |
High Temperature Load Life
After applying rated working voltage for 8000-10000 hours at 105°C and then being stabilized at +25°C,capacitors shall met following Iimits
| Capacitance change | Within 20% of teinitial measured value |
| Dissipation Factor | Les than 200% of the specified value |
| Leakage Currnt | Within specified value |
High Temperature Shelf Life
After storage for 500 hours at 105°C With no voltage applied and then being stabilized at+ 25°C, capacitors shall meet following imits
| Capacitance change | Within + 20% of the initial measured value |
| Dissipation Factor | Less than 200% of the specified value |
| Leakage Current | Less than 200% of the specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, we established our factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. We are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
