Product Details:
|
Capacitance: | 5.6UF | Voltage: | 400V |
---|---|---|---|
Tolerance: | ±20% | Operating Temperature: | 2000 Hours |
Material: | Aluminum | Size: | 10x20 |
Color: | Yellow | Sample Service: | Support |
Application: | High Temperature Circuits | ||
High Light: | ISO9001 RoHS High Frequency Capacitors,High Frequency Capacitors 5.6UF400V,LED Light 5.6UF 400V Capacitors |

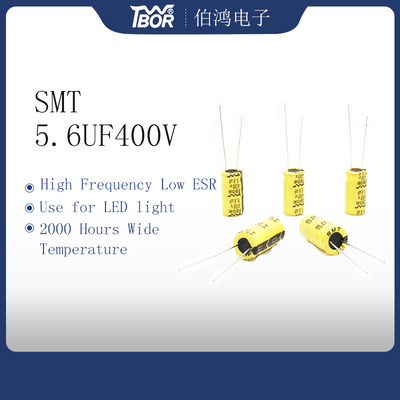

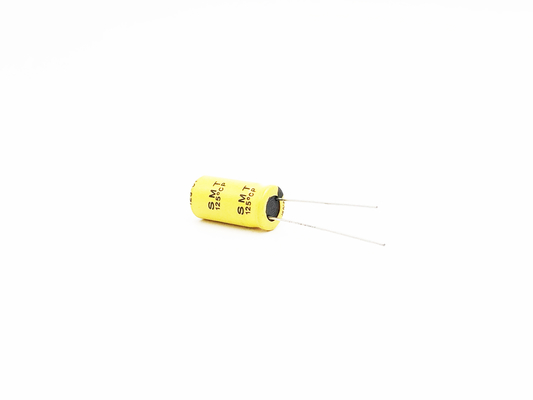

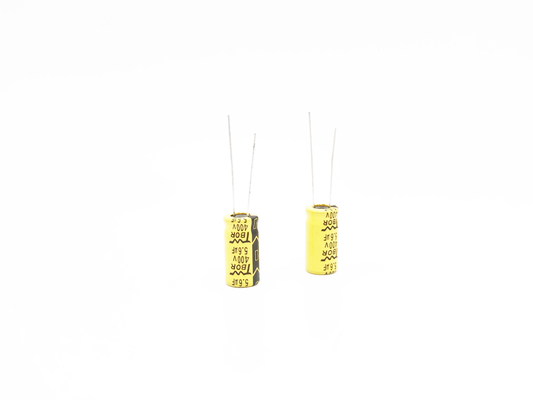

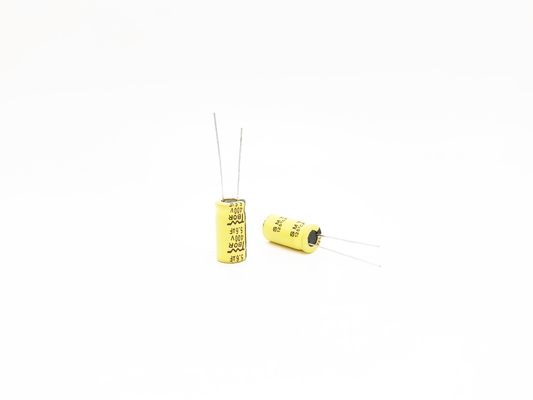

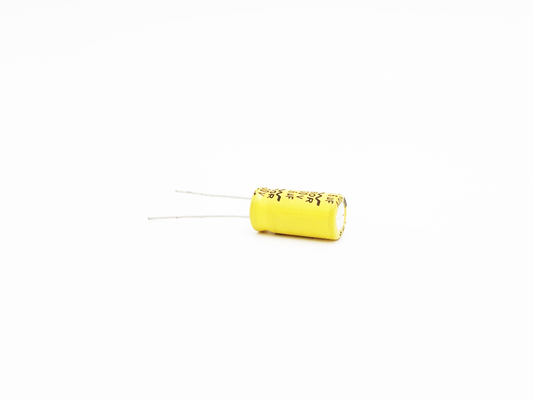

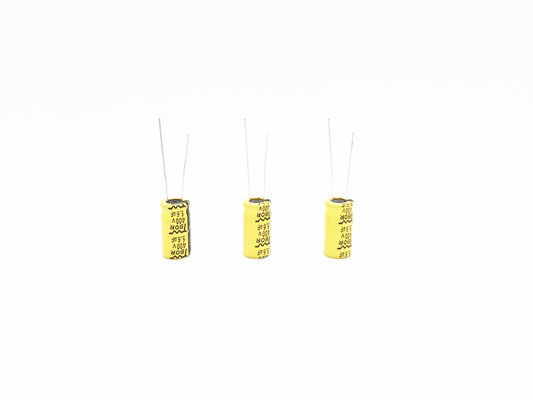

High Temperature Aluminum Capacitor 5.6UF400V LED Light Capacitor
SMT series
●Features:
1. 130°C,Low impedance at high frequency.
2. Ideally suited for use ofswitching power supplies and other industrialelectronic product applications.
3. Loda life of2000 hours at 130°CSPECIFICATIONS Item
●Key Features
Operating Temperature Range | -40°C~+ 130°C | -40°C~+130°C | -25°C~+ 130°C |
Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC- 400VDC | 450VDC |
Nominal Capacitance Range | 4.7uF~ 10000uF |
Capacitance Tolerance | +20%(M (+ 25°C,100/120Hz) |
Leakage Current
LC<0.01CV or 3(uA)which is bigger should be adopt ed,2 minute application of rated working voltage(+ 25°C) |
LC≤0.03CV+ 10,2 minute application of rated workin g voltage, (+25*C) |
|
Nominal Capacitance in uF | Rated Working Voltage in V | Leakage Current in uA |
Dissipation Factor
RatedWorking Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450 |
DFMX(+250C10/120HZ) | 0.35 | 0.30 | 0.28 | 0.24 | 020 | 0.18 | 0.18 | 0.18 | 0.15 | 0.15 | 0.15 | 0.20 | 0.20 |
High Temperature Load Life
After applying rated working voltage for 2000 hours at 130°C and then being stabilized at + 25°C,capacitors shall met following limits
Capacitance change | Within土20% of the initial measured value |
Disipation Factor | Less than 300% of the specified value |
Leakage Current | Within specifed value |
High Temperature Shelf Life Hier sorore for 500 hours at 130C With no voltage applied and then being sbilill at 25Capacitors. shall meet flowing limits
Capacitance change | Within士20% of the initial measured value |
Disspation Factor | Less than 300% of the specified value |
Leakage Current | Less than 300% of the specified value |
