Product Details:
|
| Capacitance: | 330UF | Voltage: | 50V |
|---|---|---|---|
| Tolerance: | ±20% | Operating Temperature: | 130℃ |
| Lifetime: | 2000 Hours | Material: | Aluminum |
| Size: | 10x16 | Color: | Yellow |
| Sample Service: | Support | Application: | High Temperature Circuits |
| High Light: | 330UF50V High Temperature Capacitor,10x16mm Radial Lead Type Capacitor,330UF50V Radial Lead Type Capacitor |
||

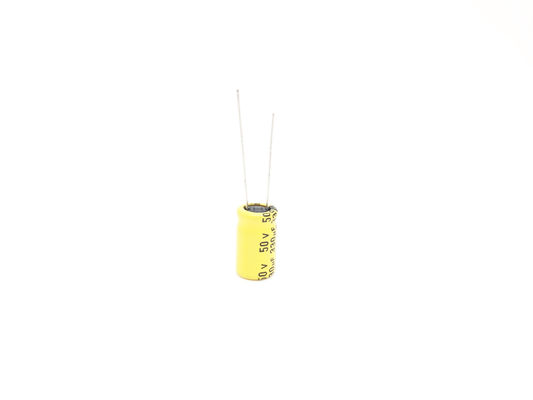

330UF50V High Temperature Capacitor LED Light Aluminum Capacitor
SMT series
●Features:
1. 130°C,Low impedance at high frequency.
2. Ideally suited for use ofswitching power supplies and other industrialelectronic product applications.
3. Loda life of2000 hours at 130°CSPECIFICATIONS Item
●Key Features
| Operating Temperature Range | -40°C~+ 130°C | -40°C~+130°C | -25°C~+ 130°C |
| Rated Working Voltage Range | 6.3VDC~ 100VDC | 160VDC- 400VDC | 450VDC |
| Nominal Capacitance Range | 4.7uF~ 10000uF |
| Capacitance Tolerance | +20%(M (+ 25°C,100/120Hz) |
Leakage Current
| LC<0.01CV or 3(uA)which is bigger should be adopt ed,2 minute application of rated working voltage(+ 25°C) |
LC≤0.03CV+ 10,2 minute application of rated workin g voltage, (+25*C) |
|
| Nominal Capacitance in uF | Rated Working Voltage in V | Leakage Current in uA |
Dissipation Factor
| RatedWorking Voltage(V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 | 450 |
| DFMX(+250C10/120HZ) | 0.35 | 0.30 | 0.28 | 0.24 | 020 | 0.18 | 0.18 | 0.18 | 0.15 | 0.15 | 0.15 | 0.20 | 0.20 |
High Temperature Load Life
After applying rated working voltage for 2000 hours at 130°C and then being stabilized at + 25°C,capacitors shall met following limits
| Capacitance change | Within土20% of the initial measured value |
| Disipation Factor | Less than 300% of the specified value |
| Leakage Current | Within specifed value |
High Temperature Shelf Life Hier sorore for 500 hours at 130C With no voltage applied and then being sbilill at 25Capacitors. shall meet flowing limits
| Capacitance change | Within士20% of the initial measured value |
| Disspation Factor | Less than 300% of the specified value |
| Leakage Current | Less than 300% of the specified value |
