Product Details:
|
| Artical Number: | PSH 10UF250V 22X35 | Capacitance Range: | 1uF ～220uF |
|---|---|---|---|
| Voltage Range: | 200V～450V | Tolerance: | ±20% |
| Temperature Range: | -40℃～+105℃ | Applications: | CFL |
| Certificate: | ISO9001 ISO 14001 RoHS | Supplier Type: | Original Manufacturer |
| Load Life: | 5000 Hours | Sample Service: | Support |
| Material: | Aluminum | Color: | Brown |
| Size: | 22X35mm | ESR (Equivalent Series Resistance): | Contact Us To Check Our Datasheet |
| Impedance: | Contact Us To Check Our Datasheet | ||
| High Light: | 22X35MM 10uf 250v Capacitor,Wide Temperature 10uf 250v Capacitor,22X35MM Wide Temperature Capacitor |
||

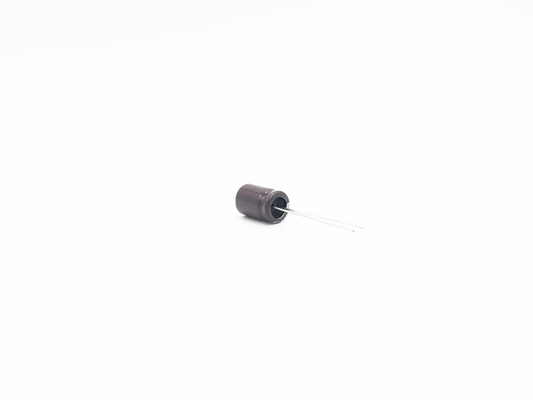

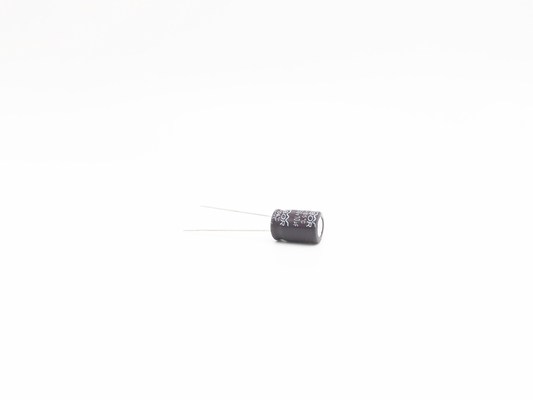

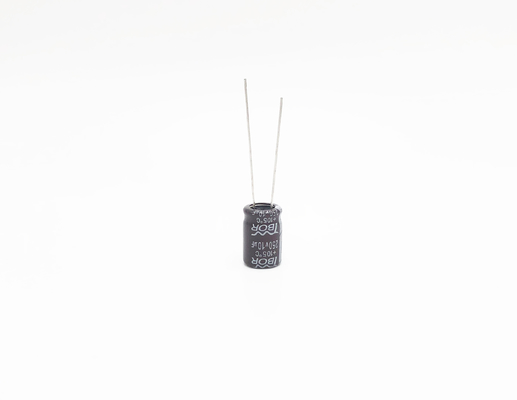

10UF250V 22X35MM Inverter Capacitor CFL Energy-save Lamp Capacitor

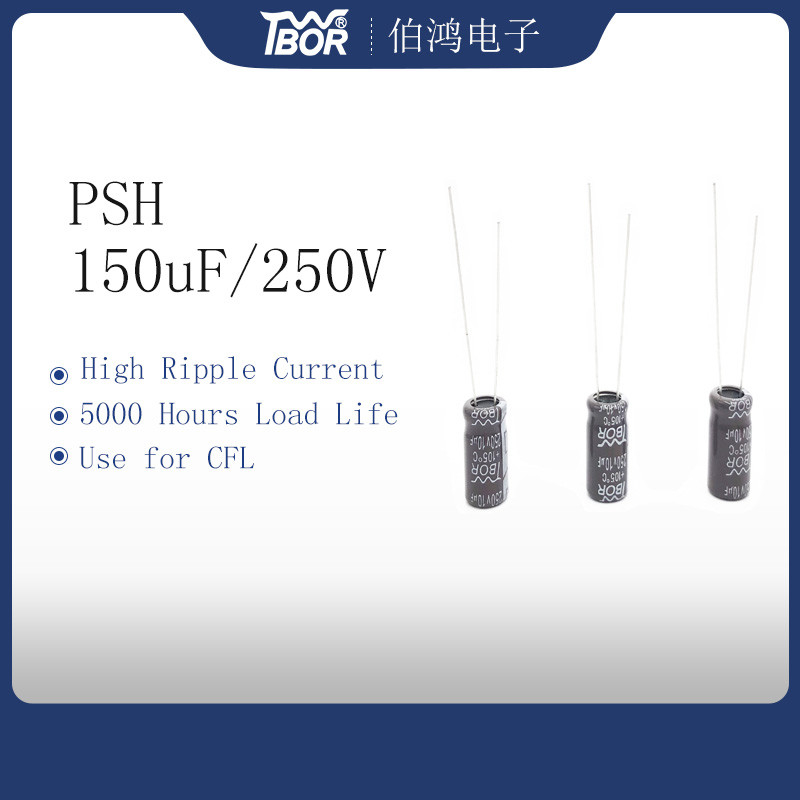

PSH series
FEATURES
■ 105°C, High ripple current,5000-8000 hours long life.
■ suited for CFL,electronic ballast and other electronic products
SPECIFICATIONS
| Item | Key Feature |
| Operating Temperature Range | -40°C~ +105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF ~ 220uF |
| Capacitance Tolerance | 20%(M)(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of rated working voltage,(+ 25°C) | ||
| C: Nominal Capacitance in uF | V: Rated Working Voltage in V | LC: Leakage C urrent in uA |
|
| Disspation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+25°C,100/120Hz) | 0.10 | 0.10 | 0.12 | 0.12 |
| highr Teperaure loaLife | After applying rated working voltage with rated ripple current for 5000 hours and 105°C and test stabilized capacitors at + 25°C, the capacitors shall meet the ofllowing limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capac itors at+ 25°C,the capacitors shall meet the fo llowing limits. |
|
| Capacitance change | Within土20 % of the initial measured value | |
| Disspation Factor | Less than 200 % of the specified value | |
| Leakage Current | Less than 200 % of the specified value | |
Product Details:
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
FAQ
A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.
Q: What is the material of your products?
A: The material is aluminum.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need.
