Product Details:
|
Artical Number: | PSL15uf250v 8x16 | Capacitance: | 15UF |
---|---|---|---|
Voltage: | 250V | Tolerance: | ±20% |
Supplier Type: | Original Manufacturer | Cross Reference: | Aluminum Electrolytic Capacitor |
Package: | Depends On Size | Keyword: | Snap-in Electrolytic Capacitor |
Load Life: | 10000 Hours | ||
High Light: | High Ripple Current Electrolytic Capacitor 15uf,15uf 250v snap in electrolytic capacitors,Capacitor 15uf 250v High Ripple Current |

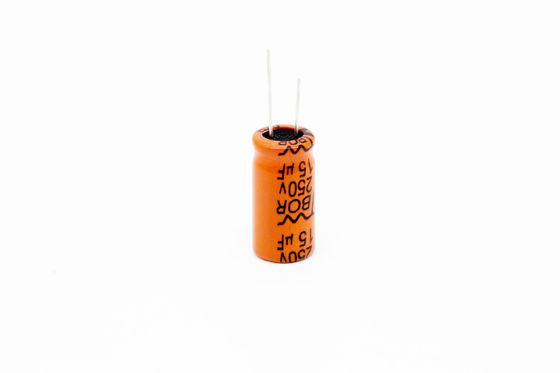

10000 Hours Long Life High Ripple Current 15uf250v Radial Electrolytic Capacitor
PSL series
FEATURES
■105°C,High ripple current, 10000-12000 hours extremely long life.
■Suited for CFL, electronic ballast and other electronic products.
SPECIFICATIONS
Item | Key Feature |
Operating Temperature Range | -40℃~+105℃ |
Rated Working Voltage Range | 200VDC ~ 450VDC |
Nominal Capacitance Range | 1uF ~ 220uF |
Capacitance Tolerance | +20%(M) (+25*C,100/120Hz) |
Leakage Current | LC <0.02CV+ 10uA,2-minute application of rated working voltage,(+ 25°C) | ||
C: Nominal Capacit ance in uF |
V:Rated Working Voltage in V | LC: Leakage Current in uA |
Dissipation Factor | Rated Working Voltage (M) | 200 | 250 | 400 | 450 |
DF (MAX)(+ 25°C,100/120Hz) | 0.08 | 0.08 | 0.10 | 0.10 |
high Temperature Load Life | After applying rated working voltage with rated ripple current for 10000 hours at 105°C and test the stabilized capacitors at -25°C, the capacitors shall meet the following limits. | |
Capacitance change | Within+20 % of the initial measured value | |
Disspation Factor | Less than 300% of the specified value | |
Leakage Current | Within specified value |
High Temperature Load Life | After storage for 500 hours at 105°C with no voltage applied and test the stabilized capacitors at + 25°C, the capacitors shall meet the following limits. | |
Capacitance change | Within +20 % of the initial measured value | |
Disspation Factor | Less than 200 % of the specified value | |
Leakage Current | Less than 200 % of the specified value |
Company Profile
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, we established our factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan.And our products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries.
