Product Details:
|
| Model Number: | PST100uF200V 18x27 | Tolerance: | ±20% |
|---|---|---|---|
| Type: | Aluminum Electrolytic Capacitor | Price Term: | FOB |
| Place Of Origin: | Zhao Qing China | Supplier Type: | Original Manufacturer |
| Operating Temperature: | -40℃~+105℃ | Application: | CFL |
| High Light: | 100uF200V Inverter Capacitor,8000 Hours High Ripple Current Capacitors,Inverter Capacitor 8000 Hours |
||
PRODUCT SPECIFICATION
PST series

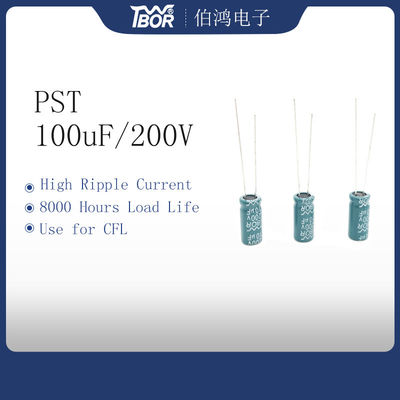

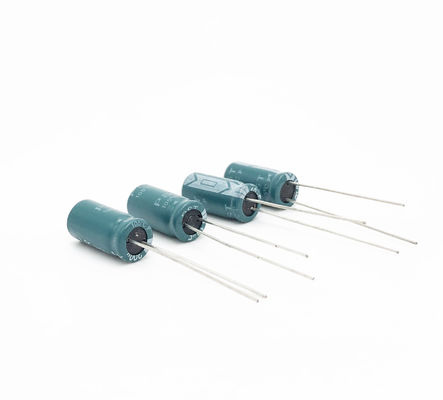

| Model Number | PST100uF200V 18x27 |
| Capacitance Range | 1UF~220UF |
| Voltage Range | 200V~450V |
| Tolerance | ±20% |
| Temperature Range | -40℃~+105℃ |
FEATURES
■105℃,High ripple current,8000-10000 hours extremely long life.
■Suited for CFL, electronic ballast and other electronic products.
SPECIFICATIONS
| Item | Key Features |
| Operating Temperature Range | -40°C~+105°C |
| Rated Working Voltage Range | 200VDC ~ 450VDC |
| Nominal Capacitance Range | 1uF~ 220uF |
| Capacitance Tolerance | 土20%(M(+ 25°C,100/120Hz) |
| Leakage Current | LC <0.02CV+ 10 uA,2-minute application of ra ted working voltage,(+ 25°C) |
||
| C: Nominal Capacitance in uF | V:Rated Working Voltage in V | LC:Leakage Current in uA | |
| Dissipation Factor | Rated Working Voltage(V) | 200 | 250 | 400 | 450 |
| DF (MAX)(+ 25°C,100/120Hz) | 0.08 | 0.08 | 0.10 | 0.10 |
| High Temperature Load Life | After applying rated working voltage with rated ripple current for 8000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet the following limits. | |
| Capacitance change | Within土20 % of the initial measured value | |
| Dissipation Factor | Less than 300 % of the specified value | |
| Leakage Current | Within specified value | |
| High Temperature Shelf Life | After storage for 500 hours at 105 C with no voltage applied and and test the stabilized capacitors at+ 25°C,capacitors shal meet the following limits | |
| Capacitance change | Within土20% of the initial measured value | |
| Dissipation Factor | Less than 200 % of the specified value | |
| Leakage Current | Within specified value | |
Product Details:
Company Profile:
BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD
Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And we are certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.
Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc..
Capacitor Use:
Packing:
Cooperative Company:
Our Certificate
WHY CHOOSE US
1.More than 30 years experience for capacitor producing & QC team.
2.Professional R&D and sales team.
3.7day*24 hours on time service.
4.Focus on after service.
5.7day*24 hours on time service.
6.Competitive price.
.
