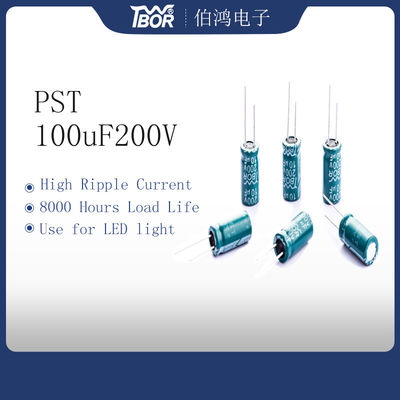

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life

Certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
China Bor Hurng Electronic( Zhao Qing) Co., Ltd. certification
I'm Online Chat Now

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life
PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life

Large Image :  PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: PST100uF200V 18x27
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 per month

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life

Description
Model Number: PST100uF200V 18x27 Capacitance: 100UF
Voltage: 200V Tolerance: ±20%
Type: Aluminum Electrolytic Capacitor Material: Aluminum
Color: Green Size: 18x27mm
Sample Service: Support Price Term: FOB
Advantage 1: Fast Delivery Advantage 2: Factory Price
Advantage 3: More Than 30 Years Experience Capacitor Producing Advantage 4: 24 Hours On Time Service
Advantage 5: High Ripple Current Advantage 6: Extremely Long Life
High Light:

PST Green LED Light Capacitor

,

Capacitor 100uf 200v 8000 Hours

,

LED Light Capacitor 100uf 200v

100uF200V LED Light Capacitor 8000 Hours Long Life Aluminum Capacitors

PRODUCT SPECIFICATION



PST series

Model Number PST100uF200V 18x27
Capacitance Range 1UF~220UF
Voltage Range 200V~450V
Tolerance ±20%
Temperature Range -40℃~+105℃





FEATURES
■105*C,High ripple current,8000-10000 hours extremely long life.

■Suited for CFL, electronic ballast and other electronic products.



SPECIFICATIONS



Item Key Features
Operating Temperature Range -40°C~+105°C
Rated Working Voltage Range 200VDC ~ 450VDC
Nominal Capacitance Range 1uF~ 220uF
Capacitance Tolerance 土20%(M(+ 25°C,100/120Hz)
Leakage Current LC <0.02CV+ 10 uA,2-minute application of ra
ted working voltage,(+ 25°C)
C: Nominal Capacitance in uF V:Rated Working Voltage in V LC:Leakage Current in uA
Dissipation Factor Rated Working Voltage(V) 200 250 400 450
DF (MAX)(+ 25°C,100/120Hz) 0.08 0.08 0.10 0.10
High Temperature Load Life After applying rated working voltage with rated ripple current for 8000 hours at 105°C and test the stabilized capacitors at + 25°C, capacitors shall meet the following limits.
Capacitance change Within土20 % of the initial measured value
Dissipation Factor Less than 300 % of the specified value
Leakage Current Within specified value
High Temperature Shelf Life After storage for 500 hours at 105 C with no voltage applied and and test the stabilized capacitors at+ 25°C,capacitors shal meet the following limits
Capacitance change Within土20% of the initial measured value
Dissipation Factor Less than 200 % of the specified value
Leakage Current Within specified value

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 0



Product Details:

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 1PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 2PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 3PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 4



Company Profile:

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 5



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.



Capacitor Use:

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 6PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 7



Packing:

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 8





Cooperative Company:

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 9

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 10



Our Certificate

PST Green LED Light Capacitor 100uf 200v 8000 Hours Long Life 11





WHY CHOOSE US



1.More than 30 years experience for capacitor producing & QC team.

2.Professional R&D and sales team.

3.7day*24 hours on time service.

4.Focus on after service.

5.7day*24 hours on time service.

6.Competitive price.

.
