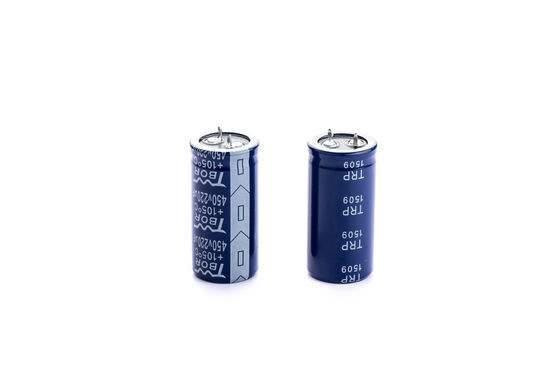

30X30MM Switching Power Supply UPS Capacitor

30X30MM Switching Power Supply UPS Capacitor
30X30MM Switching Power Supply UPS Capacitor 30X30MM Switching Power Supply UPS Capacitor 30X30MM Switching Power Supply UPS Capacitor 30X30MM Switching Power Supply UPS Capacitor 30X30MM Switching Power Supply UPS Capacitor 30X30MM Switching Power Supply UPS Capacitor

Large Image :  30X30MM Switching Power Supply UPS Capacitor

Product Details:
Place of Origin: China
Brand Name: TW BOR
Certification: ISO9001 ISO 14001 RoHS
Model Number: TRP220UF450V 30x30
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiate
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 million per month

30X30MM Switching Power Supply UPS Capacitor

Description
Model Number: TRP 220UF450V 30x30 Capacitance: 220UF
Voltage: 450V Tolerance: ±20%
Type: Snap-in Package Type: Standard Carton
Application: Switching Power Supplies Sample Service: Support
Material: Aluminum Color: Black
Size: 30x30mm Place Of Origin: Zhao Qing China
Supplier Type: Original Manufacturer
High Light:

Switching Power Supply UPS Capacitor

,

30X30MM Switching Power Supply Capacitor

,

30X30MM UPS Capacitor

TRP series



FEATURES
■Widetemperature long lif with snap-in terminalseries.

■Top safety vent construction.
■Ideally suited for switching power supplies telecommunication and other electronic products.



SPECIFICATIONS

Item Key Feature
Operating Temperature Range -40°C~+ 105°C -25°C~ +105°C
Rated Working Voltage Range 10VDC ~ 100VDC 160VDC ~ 450VDC
Nominal Capacitance Range 1000uF ~ 68000uF 47uF~ 1000uF
Capacitance Tolerance 土20%(M)(+ 25°C,100/120Hz)
Leakage Current LC< 3,CV,with appication of rated working
voltage 5 minutes,(25°C)
Nominal Capacitance in uF Rated Working Volage in V Leakage Current in uA
Dissipation Factor Rated Working voltage(V) 10 16 25 35 50 63 100 160 200 250 350 400 450
DF(MAX (+25°C, 100/120Hz) 0.50 0.40 0.35 0.35 0.25 0.25 0.20 0.15 0.15 0.15 0.15 0.20 0.20
For capacitance of more than 100r ,add0.02 for every increase of 1000uF
Load Life Afer apingy ated working. vlage for 3000 hours at 105C and then being saihera +25°C,capacitors shall meet fllowin limits
Capacitance change Vitin t20 % of the nial measured value
Dissipation Factor Less than 200% of the specified value
Leakage Current Withn speified value
Shelf Life After storage for 500 hours at 105°C with no voltage pplied and then being slilied at +25°C, capacitors sall meet flowing limits
Capacitancechange Within 土20% of the ital measured value
Dissipation Factor Less than 200% of the specifed value
Leakage Current Less than 200% of the specifed value

30X30MM Switching Power Supply UPS Capacitor 0

Company Profile

30X30MM Switching Power Supply UPS Capacitor 1



BOR HURNG ELECTRONIC (ZHAOQING) CO., LTD



Bor Hurng Electronic Co., Ltd., which was established in Taiwan in 1978, is a professional manufacturer and seller of aluminum electrolytic capacitors. In year 1988, Bor Hurng became one of the first Taiwan enterprises in the circle that invested in China mainland and established its factory in Zhaoqing, Guangdong Province. Land occupation of the factory is 10,000㎡, with the annual capacity of 1.2 billion pieces. And the turnover is over USD$20 million per year. The enterprise is certified by ISO9001:2008 quality management system and ISO14001:2004 environment management system. All products are qualified with RoHS standard approved by SGS.

Bor Hurng’s strongest products are lighting-specialized aluminum electrolytic capacitors with the features of small size, low leakage current, low loss, good consistency, high reliability, wide temperature range and good weldability. The capacitors are suitable for CFL, LED light, HID light, electronic ballast and UPS, etc.. Bor Hurng has an excellent team of R&D experts and workers, with whole sets of fully automatic capacitor production line and testing equipment introduced from Japan and Taiwan. For the above advantages, Bor Hurng enjoys high reputation at home and abroad. Besides China mainland, the products are exported to North America, South America, Europe, Middle Africa, Australia, India, Russia, Singapore as well as other regions and countries. To provide customers with better services, Bor Hurng has set up branch offices in Dongguan, Foshan and Hong Kong.



Capacitor Use:

30X30MM Switching Power Supply UPS Capacitor 230X30MM Switching Power Supply UPS Capacitor 3



Packing:

30X30MM Switching Power Supply UPS Capacitor 4





Cooperative Company:

30X30MM Switching Power Supply UPS Capacitor 5

30X30MM Switching Power Supply UPS Capacitor 6



Our Certificate

30X30MM Switching Power Supply UPS Capacitor 7



FAQ


Q: Are you trading company or manufacturer ?

A: We are the professional factory who has more that 30 years experience for aluminum capacitor producing.



Q: What is the material of your products?

A: The material is aluminum.



Q: How can us get some samples?

A: We are honored to offer you samples. if you need.



Q: How does your factory do regarding quality control?

A: "Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;RoSH authentication. We have the professional technical personnel team,advanced equipments;Skilled production technology by 30 years.



Q: What is the delivery time?

A: Normally,the time is 7~30days as we can;we must do our best to do it much quickly.
